Parts of the instrument
2
4
3
1

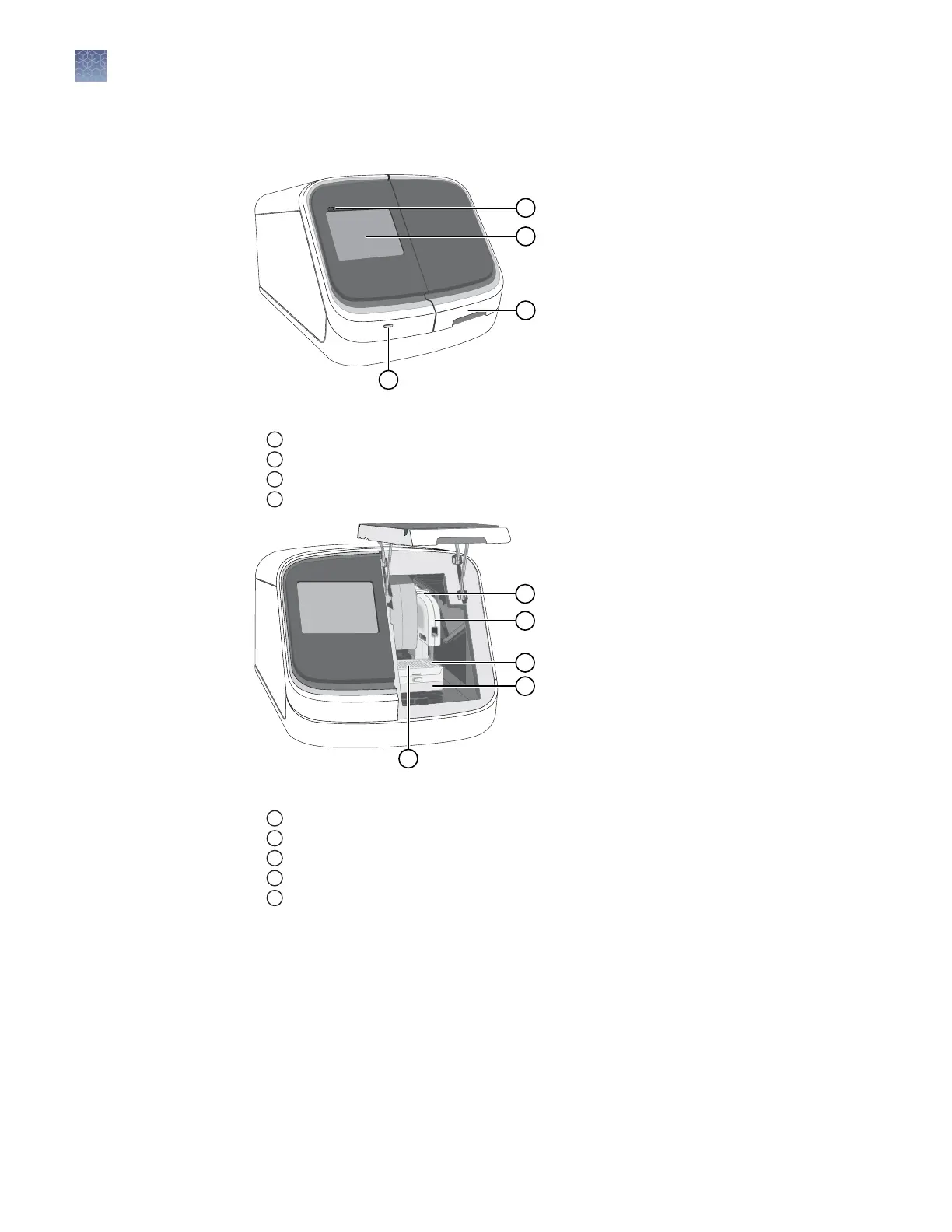

Figure 1 Front of the instrument
1
Front panel indicator—Shows the status of the instrument
2
Touchscreen—User interface
3
Door—Provides access to the cartridge, the cathode buffer, and sample plate or tubes
4
USB port
2
4
5
3
1
Figure 2 Interior of the instrument
1
Cartridge rails
2
Cartridge
3
Cathode buffer (located inside the autosampler)
4
Autosampler (contains the plate or tube holder and the cathode buffer)
5
Plate or tube holder
