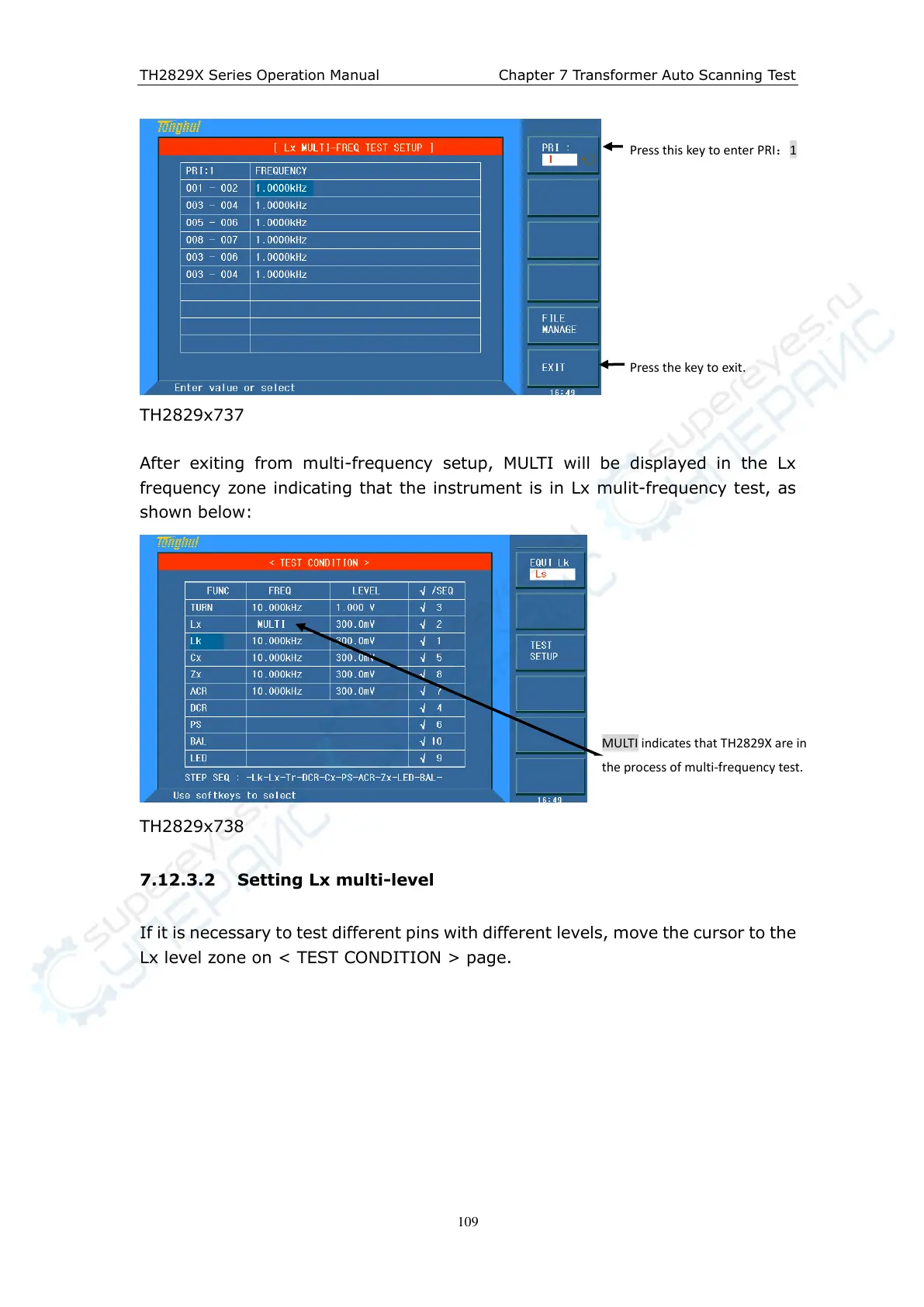

TH2829X Series Operation Manual Chapter 7 Transformer Auto Scanning Test
TH2829x737
After exiting from multi-frequency setup, MULTI will be displayed in the Lx
frequency zone indicating that the instrument is in Lx mulit-frequency test, as
shown below:
TH2829x738
7.12.3.2 Setting Lx multi-level
If it is necessary to test different pins with different levels, move the cursor to the
Lx level zone on < TEST CONDITION > page.
Press this key to enter PRI：1
MULTI indicates that TH2829X are in
the process of multi-frequency test.
