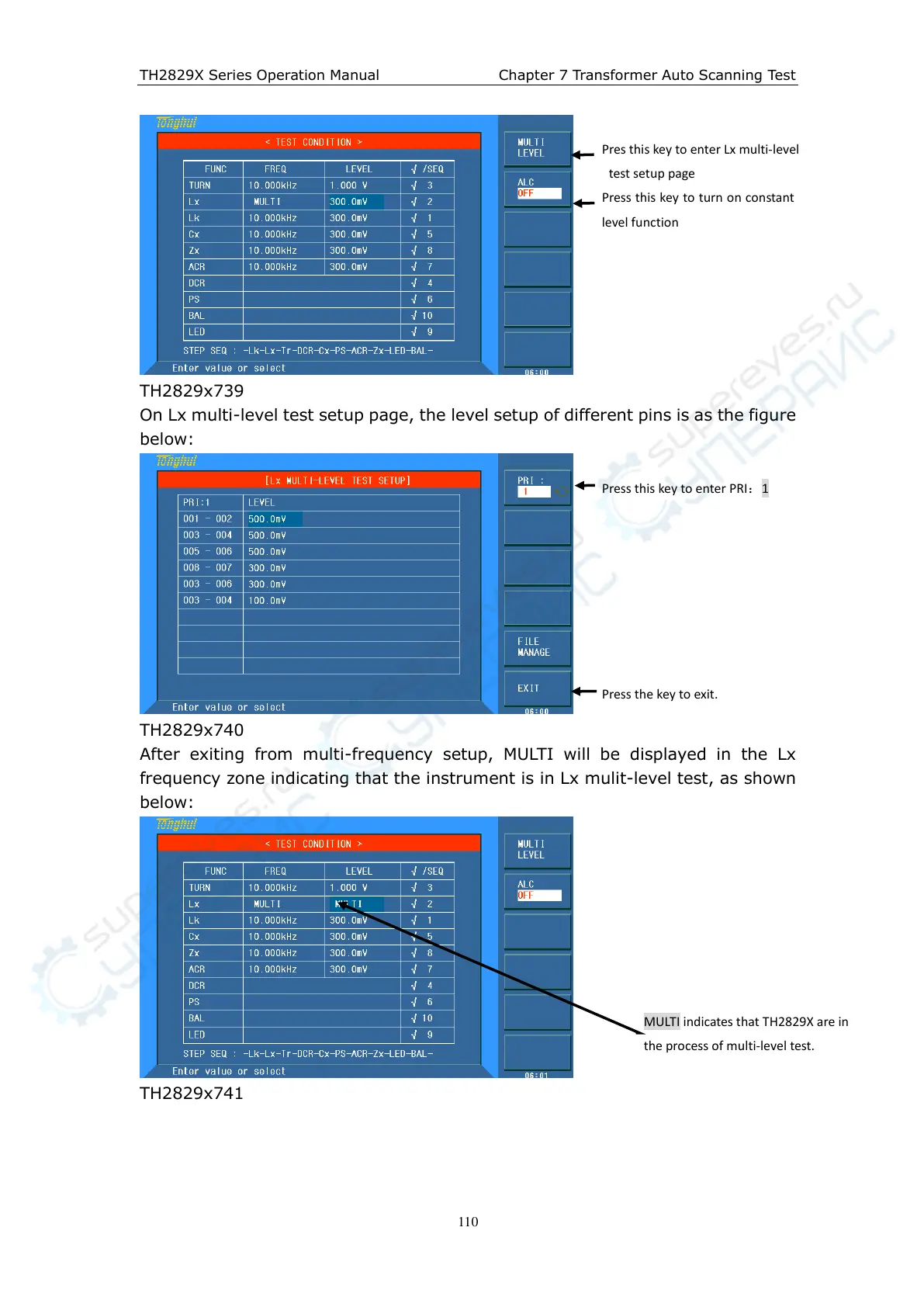

TH2829X Series Operation Manual Chapter 7 Transformer Auto Scanning Test
TH2829x739
On Lx multi-level test setup page, the level setup of different pins is as the figure
below:
TH2829x740
After exiting from multi-frequency setup, MULTI will be displayed in the Lx
frequency zone indicating that the instrument is in Lx mulit-level test, as shown
below:
TH2829x741
Pres this key to enter Lx multi-level
test setup page
Press this key to turn on constant
level function
Press this key to enter PRI：1
MULTI indicates that TH2829X are in
the process of multi-level test.
