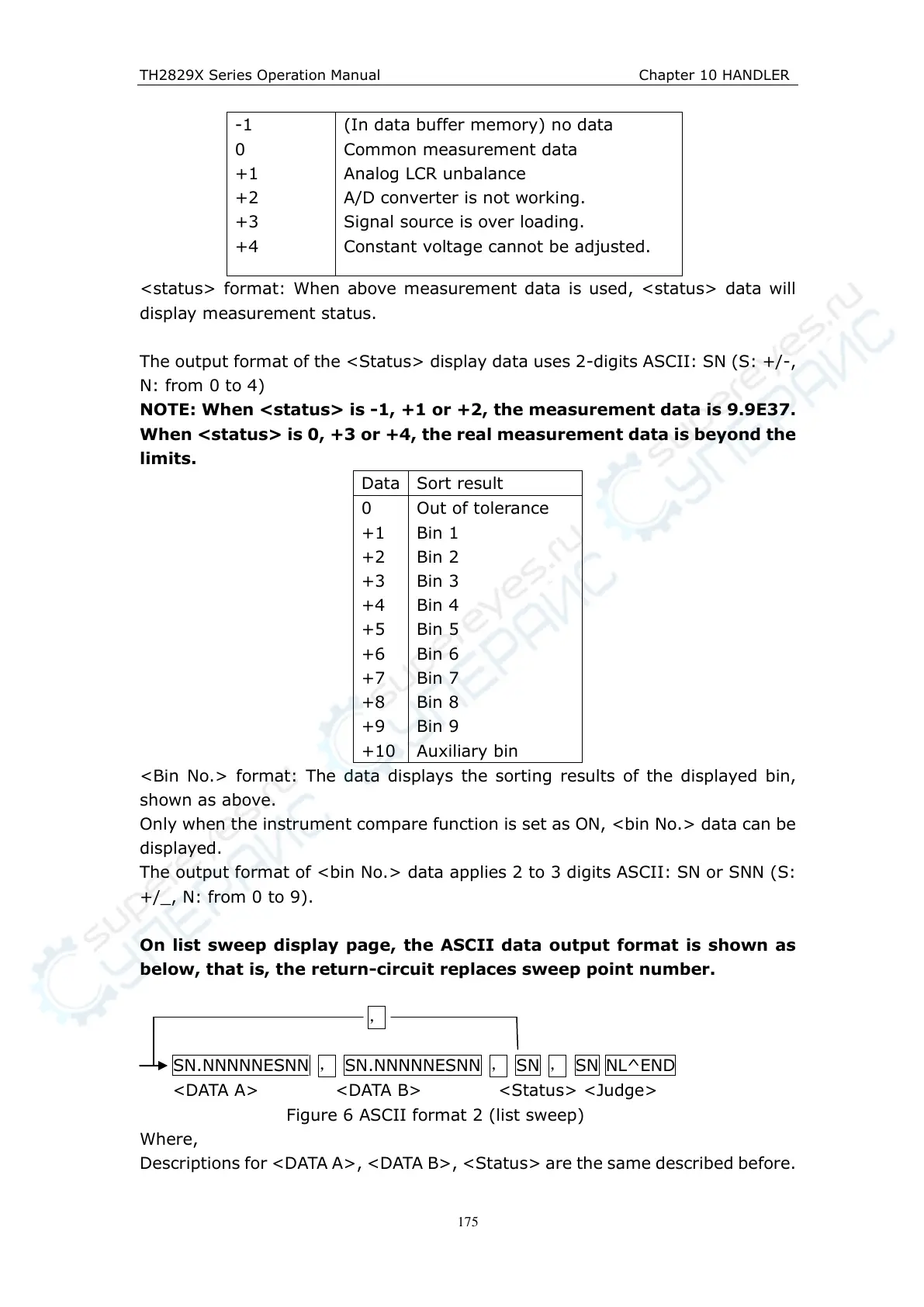

TH2829X Series Operation Manual Chapter 10 HANDLER
(In data buffer memory) no data
Common measurement data
Analog LCR unbalance
A/D converter is not working.
Signal source is over loading.
Constant voltage cannot be adjusted.
<status> format: When above measurement data is used, <status> data will
display measurement status.
The output format of the <Status> display data uses 2-digits ASCII: SN (S: +/-,
N: from 0 to 4)
NOTE: When <status> is -1, +1 or +2, the measurement data is 9.9E37.
When <status> is 0, +3 or +4, the real measurement data is beyond the
limits.
0
+1
+2
+3
+4
+5
+6
+7
+8
+9
+10
Out of tolerance
Bin 1
Bin 2
Bin 3
Bin 4
Bin 5
Bin 6
Bin 7
Bin 8
Bin 9
Auxiliary bin
<Bin No.> format: The data displays the sorting results of the displayed bin,
shown as above.
Only when the instrument compare function is set as ON, <bin No.> data can be
displayed.
The output format of <bin No.> data applies 2 to 3 digits ASCII: SN or SNN (S:
+/_, N: from 0 to 9).
On list sweep display page, the ASCII data output format is shown as
below, that is, the return-circuit replaces sweep point number.
，
SN.NNNNNESNN ， SN.NNNNNESNN ， SN ， SN NL^END
<DATA A> <DATA B> <Status> <Judge>
Figure 6 ASCII format 2 (list sweep)
Where,
Descriptions for <DATA A>, <DATA B>, <Status> are the same described before.
