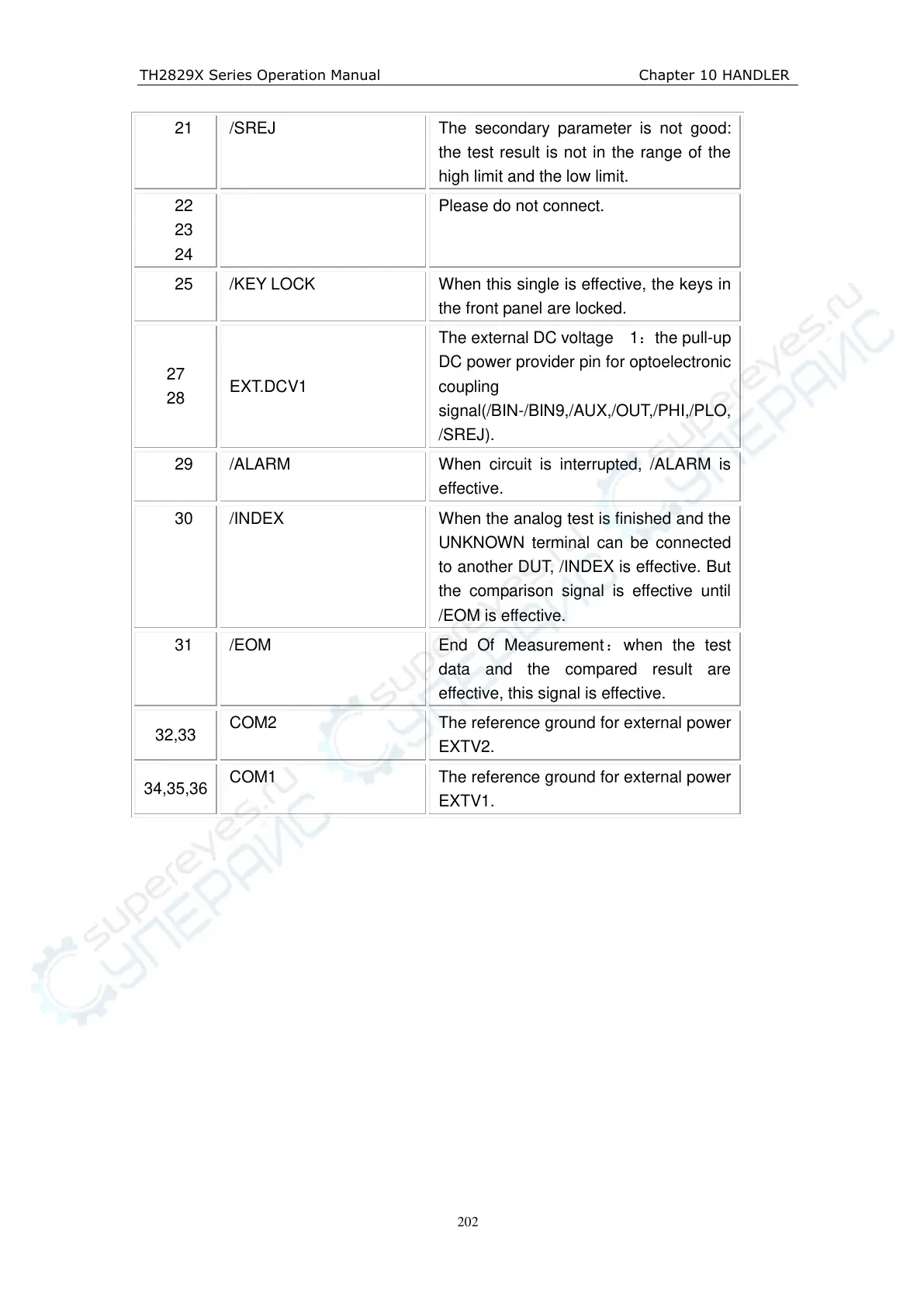

TH2829X Series Operation Manual Chapter 10 HANDLER
The secondary parameter is not good:
the test result is not in the range of the
high limit and the low limit.
When this single is effective, the keys in
the front panel are locked.
The external DC voltage 1：the pull-up
DC power provider pin for optoelectronic
coupling
signal(/BIN-/BIN9,/AUX,/OUT,/PHI,/PLO,
/SREJ).
When circuit is interrupted, /ALARM is
effective.
When the analog test is finished and the
UNKNOWN terminal can be connected
to another DUT, /INDEX is effective. But
the comparison signal is effective until
/EOM is effective.
End Of Measurement：when the test
data and the compared result are
effective, this signal is effective.
The reference ground for external power
EXTV2.
The reference ground for external power
EXTV1.
To Next Page
