TH2829X Series Operation Manual Chapter 10 HANDLER
203
The main
parameter
The secondary parameter

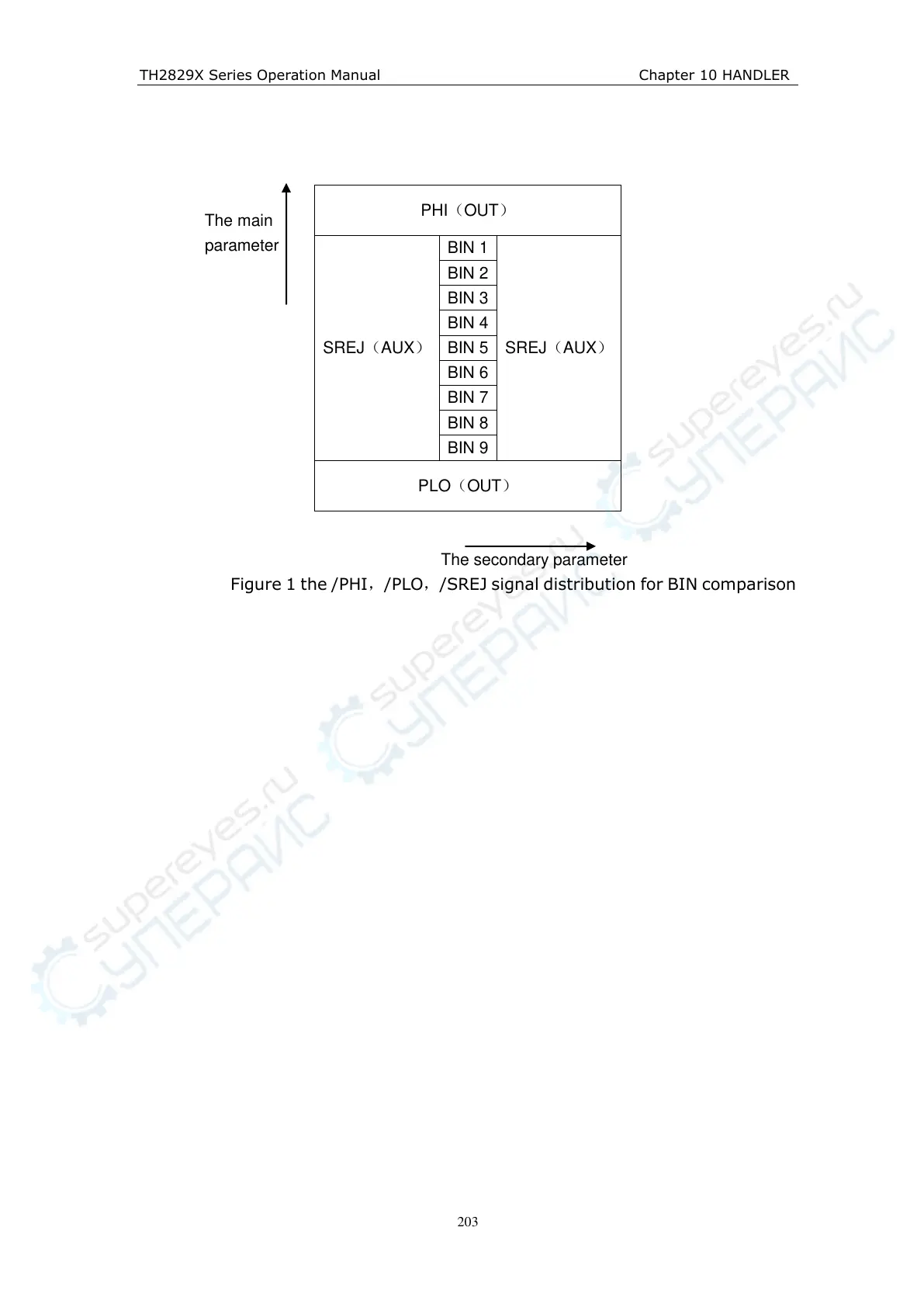

Figure 1 the /PHI/PLO/SREJ signal distribution for BIN comparison
PHIOUT
SREJAUX
BIN 1
SREJAUX
BIN 2
BIN 3
BIN 4
BIN 5
BIN 6
BIN 7
BIN 8
BIN 9
PLOOUT
