LiftCylinderService
g303569

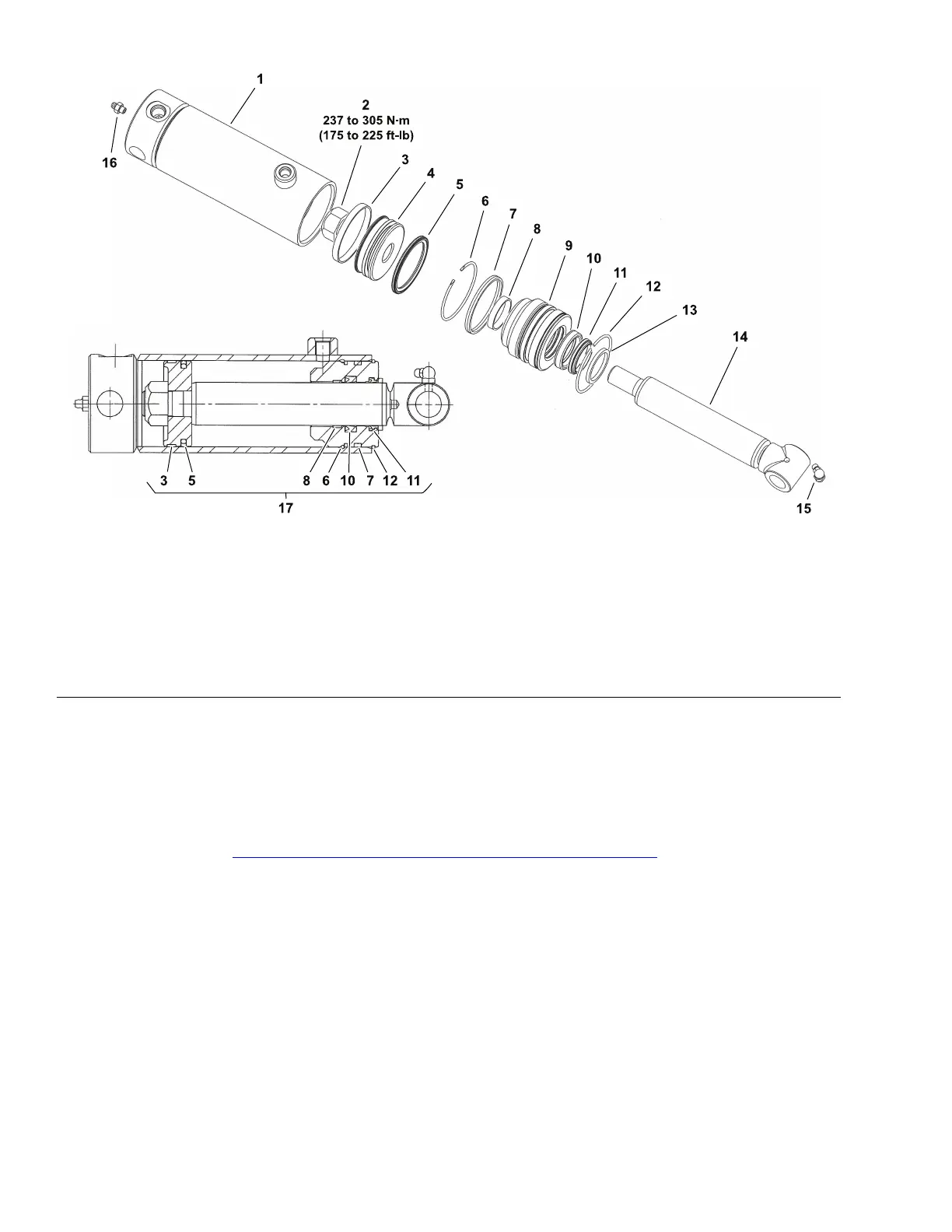

Figure71
1.Barrel7.Dualseal13.Wipersealmask
2.Locknut8.Rodwearring14.Rod
3.Pistonwearring
9.Cylinderhead15.Greasetting
4.Piston10.Rodseal
16.Greasetting
5.Pistonseal11.Rodwiper17.Repairkit
6.Internalretainingring12.Externalretainingring
Ifitemsotherthanthecylindersealsarewornordamaged,thecylindermust
bereplacedasacompleteassembly.Disassemble,inspect,andassemblethe
cylinderforinspectionandsealreplacementonly.
Thecylinderrepairkitincludesspecialtoolsrequiredtoreplacethecylinder
seals.Refertothedetailedinstructionsincludedwiththerepairkit,and
viewtheinstructionalvideoHowtoRepairaWireRingCylinderfoundat
http://www.monarchindustries.com/lion-hydraulics/media
priortoservicingthe
cylinder.
HydraulicSystem:ServiceandRepairs
Page5–104
