ReplacingtheParkingBrakeCables(continued)
8.Usingthenotesrecordedduringbrakecableremoval,routeandsecurethe
brakecablethroughthemachine.
Note:Thelonger(rightside)cableshouldpassoverthetopofoneofthe
wheelmotorhydraulictubesmidwaybetweenthewheelmotors.
9.Fitthelowerendofthecablehousingintothebracketnearthewheelmotor
andtightenthecablenut.
10.Connectthebrakecabletothebrakeactuatorleverwiththepreviously
removedfastenersandinstallthebrakereturnspring.

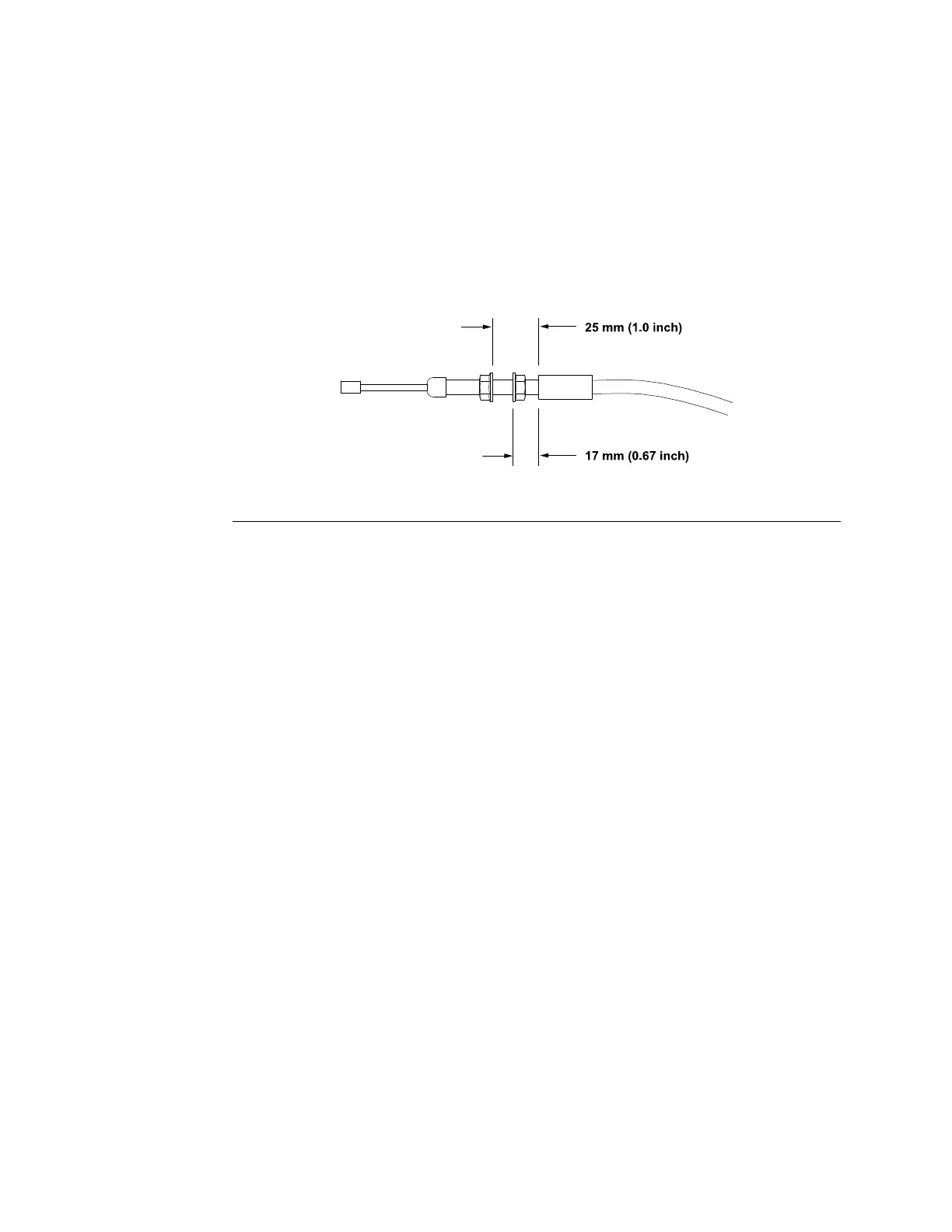

11.Positionthejamnutsattheupperendofthecablehousingasshown;refer
toFigure114.
g313965
Figure114
12.Ensurethatthebrakeleveriscompletelydisengaged(down)andtthecable
endintotheequalizerbracketthecablehousingintothebracketbelowthe
brakelever.Thecablesshouldpushthebottomjamnutupwardagainst
thebracket.
13.Pulldownonbothcablehousingsafewtimestoremoveanyslackinthe
assembly.Thebottomjamnutshouldmoveawayfromthebracketwhen
thehousingispulled.
14.Pullthecablehousingdownrmlybyhandandadjustthebottomjamnut
untilitcontactsthebracket.Performthissteponbothcablesindividually.
Note:Applying18to29kg(40to65lbs)forcetotheparkingbrakelever
shouldraisetheparkingbrakelevertothelastlockingposition(justshortof
fullyextended).
15.Tightenthejamnuts.
Chassis:ServiceandRepairs
Page7–10
Groundsmaster
®
3200,3300and3310
19240SLRevA
