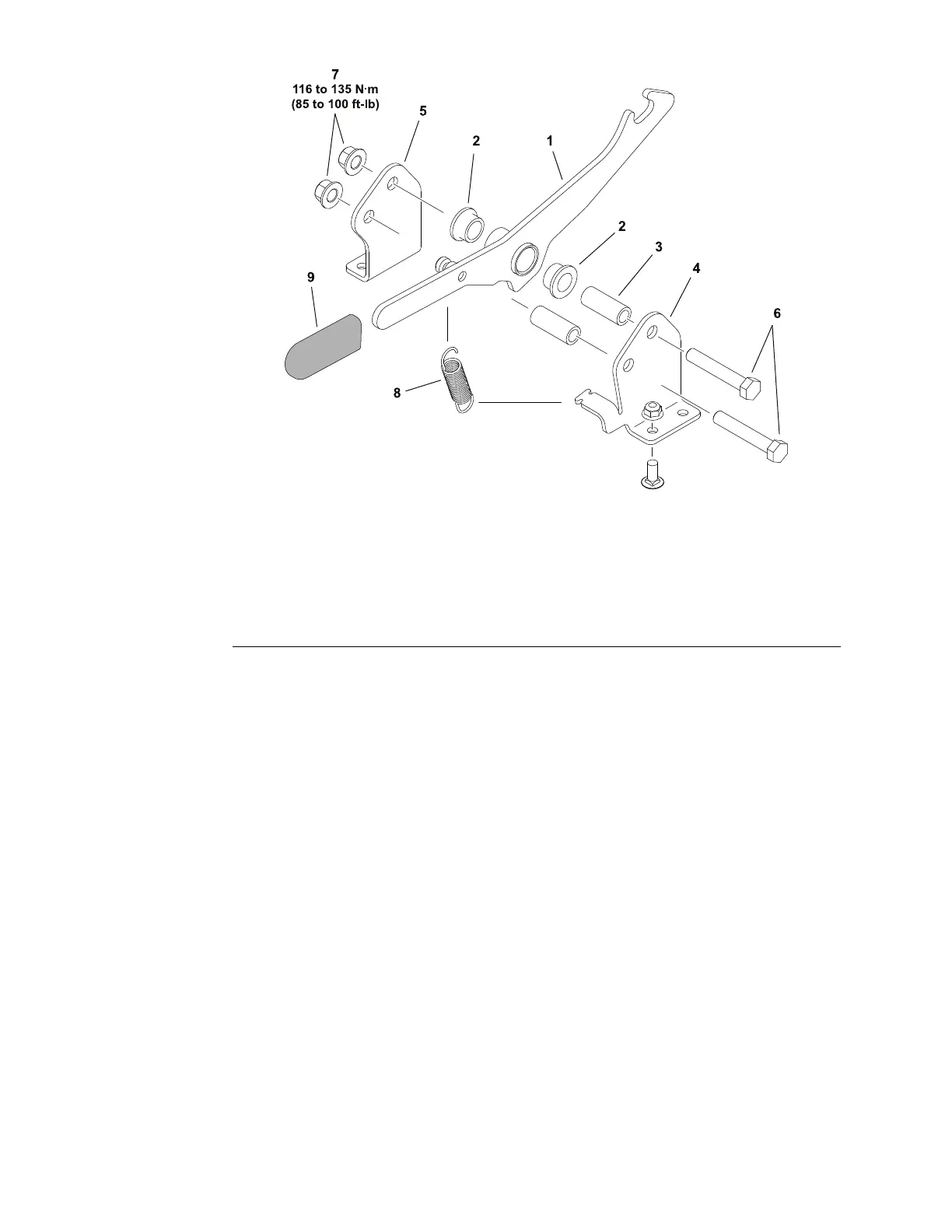

LatchAssembly
g315284
Figure141
1.Latcharm
6.Capscrew(2each)
2.Flangebushing(2each)7.Flangenut(2each)
3.Spacer(2each)
8.Extensionspring
4.Latchmount–LH9.Handle
5.Latchmount–RH
ServicingtheLatchAssembly
RefertoFigure141forthisprocedure.
1.Parkthemachineonalevelsurface,lowerthecuttingunit,engagethe
parkingbrake,setthekeyswitchtotheOFFpositionandremovethekey
fromthekeyswitch.
2.Removetheextensionspringanddisassembletheservicelatchas
necessary.
3.Inspectthelatchhandlebushingsfordamageorwearandreplaceas
necessary.
4.Ifthelatchmountsareremovedfromthecuttingunit,securethemountsat
tothecuttingunitbeforetighteningtheangenuts(item7).
5.Tightentheangenuts(item7)from116to135N·m(85to100ft-lb).
CuttingUnits:ServiceandRepairs
Page8–16
Groundsmaster
®
3200,3300and3310
19240SLRevA
