ENGINE
4-57TX525 Service Manual Rev. 000

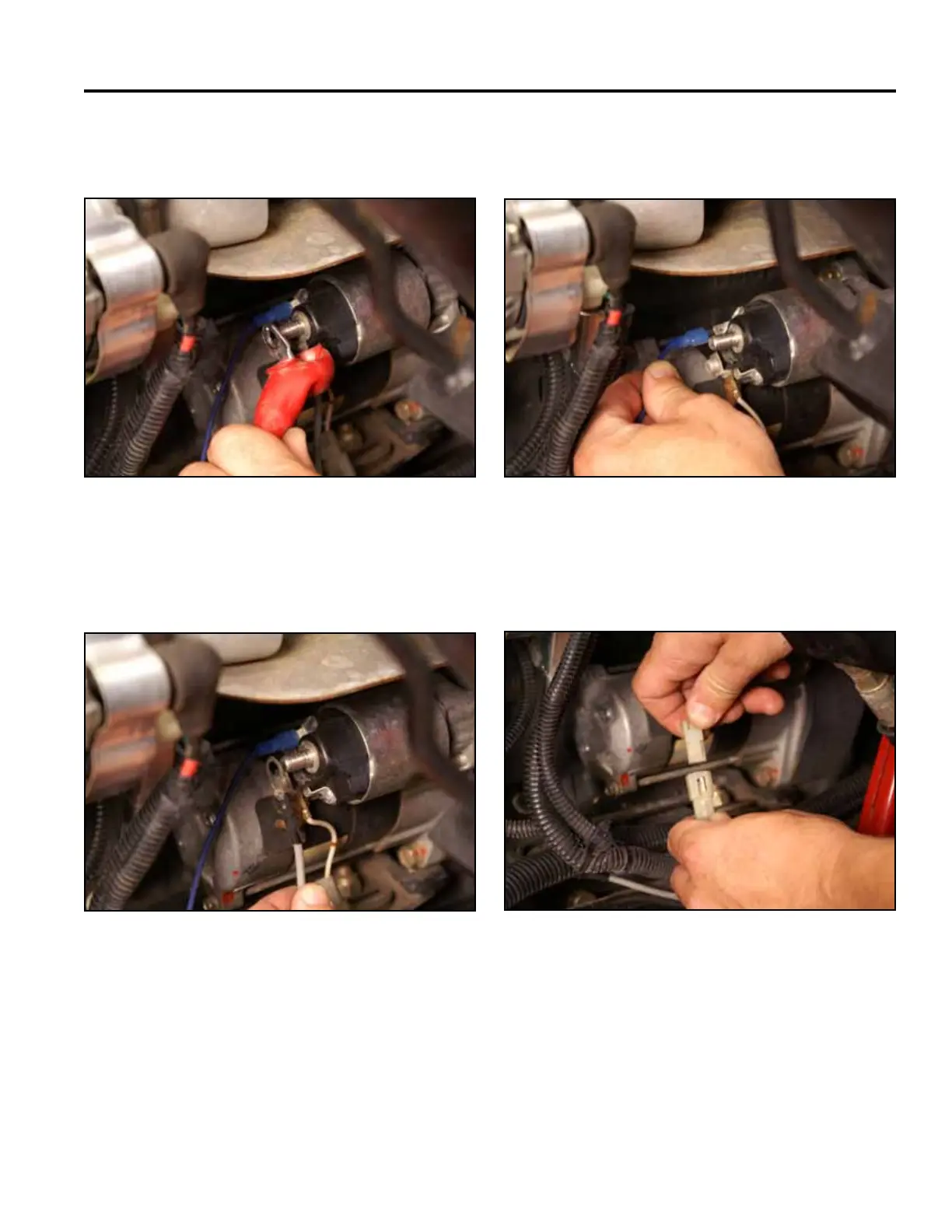

10. Removethepositivebatterycablefromthestarter
terminal(Fig.0286).
Fig 0286 PICT-5192
11. Removethegreyfusiblelinkwirefromthestarter
terminal(Fig.0287).
Fig 0287 PICT-5193
12. Removethebluespadeterminalfromthestarter
(Fig.0288).
Fig 0288 PICT-5194
13. Unplugthewireharnessfromthestarterplug(Fig.
0289).
Fig 0289 PICT-5196
