Toro TX525 - Lift Cylinder Assembly

HYDRAULIC SYSTEM
6-101TX525 Service Manual Rev. 000
Lift Cylinder Assembly

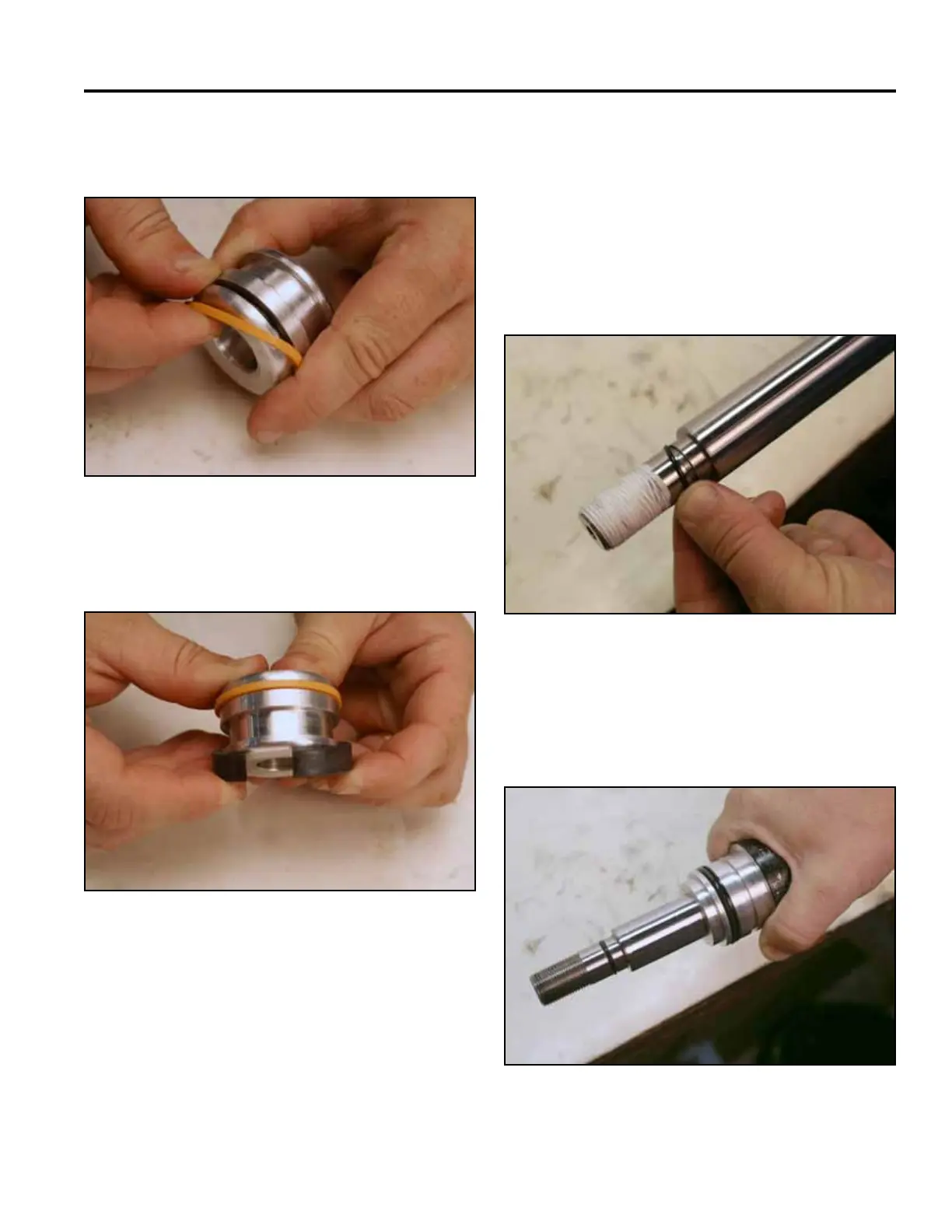

19. Install the piston seal on top of the back-up ring (Fig.
1215).
Note: Lubricate all parts during assembly.
1. Secure the cylinder ram into a vise.
2. Protect the threads of the ram and then slide the
o-ring onto the ram shaft and into the groove (Fig.
1217).
Fig 1215 PICT-3062a
Fig 1217 PICT-3064a
3. Remove the thread protection material.
4. Slide the head onto the cylinder ram (Fig. 1218).
20. Install the wear ring onto the piston (Fig. 1216).
Fig 1218 PICT-3065a
Fig 1216 PICT-3063a
