Toro TX525 - Neutral Proximity (Magnetic) Switch; Purpose; Location; How It Works

ELECTRICAL
5-11TX525 Service Manual Rev. 000

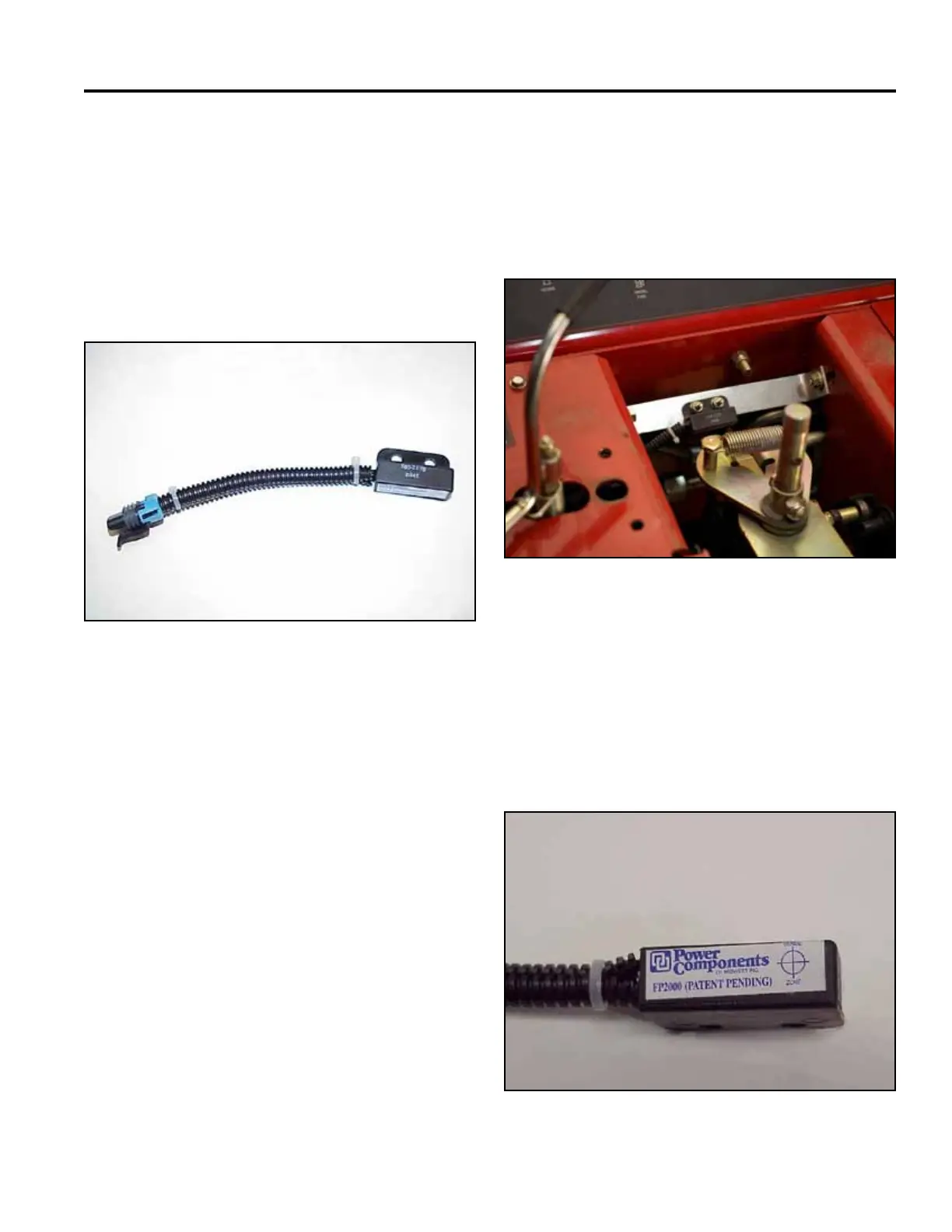

Neutral Proximity (Magnetic) Switch
Purpose
Location
How It Works
The neutral proximity switch ensures the traction control
lever is in the neutral/stop position when starting the
unit. It is a magnetic type switch and it must be in close
proximity to the traction control lever bolt to close the
contacts (Fig. 0816).
The neutral proximity switch has a sense zone which is
the magnetic portion on the switch. A bolt located on the
traction control lever aligns with the sense zone in the
neutral/stop position to magnetically close the contacts
in the switch (Fig. 0818).
Fig 0816 CLR MVC-878X
Fig 0818 CLR MVC-885X
The neutral proximity switch is located under the center
panel of the control panel. The drive handle and the
center panel must be removed to access the neutral
switch (Fig. 0817).
Fig 0817 PICT-5610
