Toro TX525 - Engine Installation; Engine Component Installation

ENGINE
4-96 Rev. 000 TX525 Service Manual

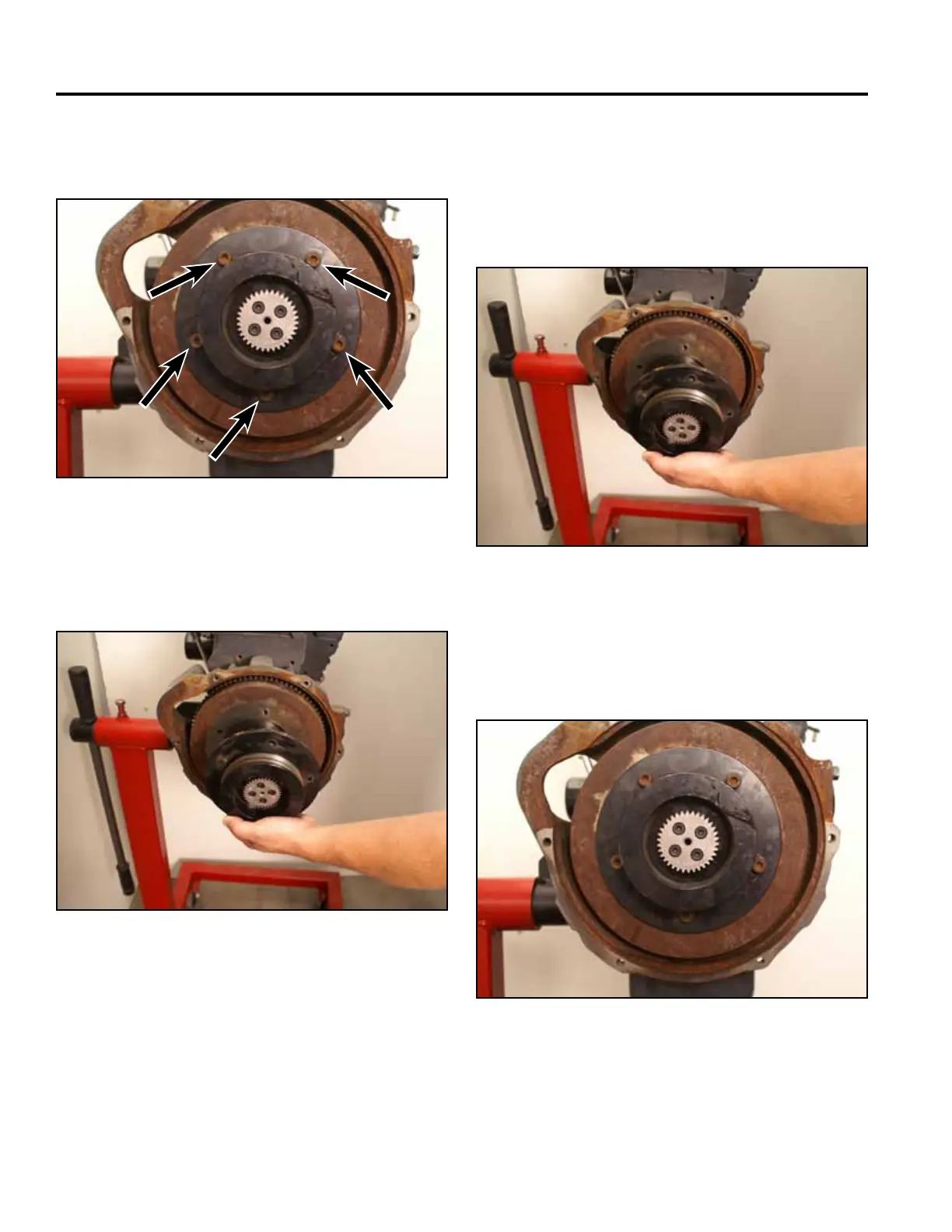

34. Usinga6mmAllenheadsocket,removethe5bolts
securingtheenginepulleytotheengine(Fig.0438).
Fig 0438 PICT-5534-2
35. Removetheenginepulleyfromtheengine(Fig.
0439).
Fig 0439 PICT-5537-2
36. Toservicetheengine,refertotheKubotaD722/
D902Tier2DieselEngineServiceManual(Toro
FormNo.492-4796).
Engine Installation
Engine Component Installation
Fig 0440 PICT-5537-2
2. Usinga6mmAllenheadsocket,install6bolts
securingtheenginepulleytotheengineywheel
(Fig.0441).
Fig 0441 PICT-5534-2
1. Positiontheenginepulleytotheengine(Fig.0440).
