DRIVE SYSTEM
7-8 Rev. 000 TX525 Service Manual
Belt Installation

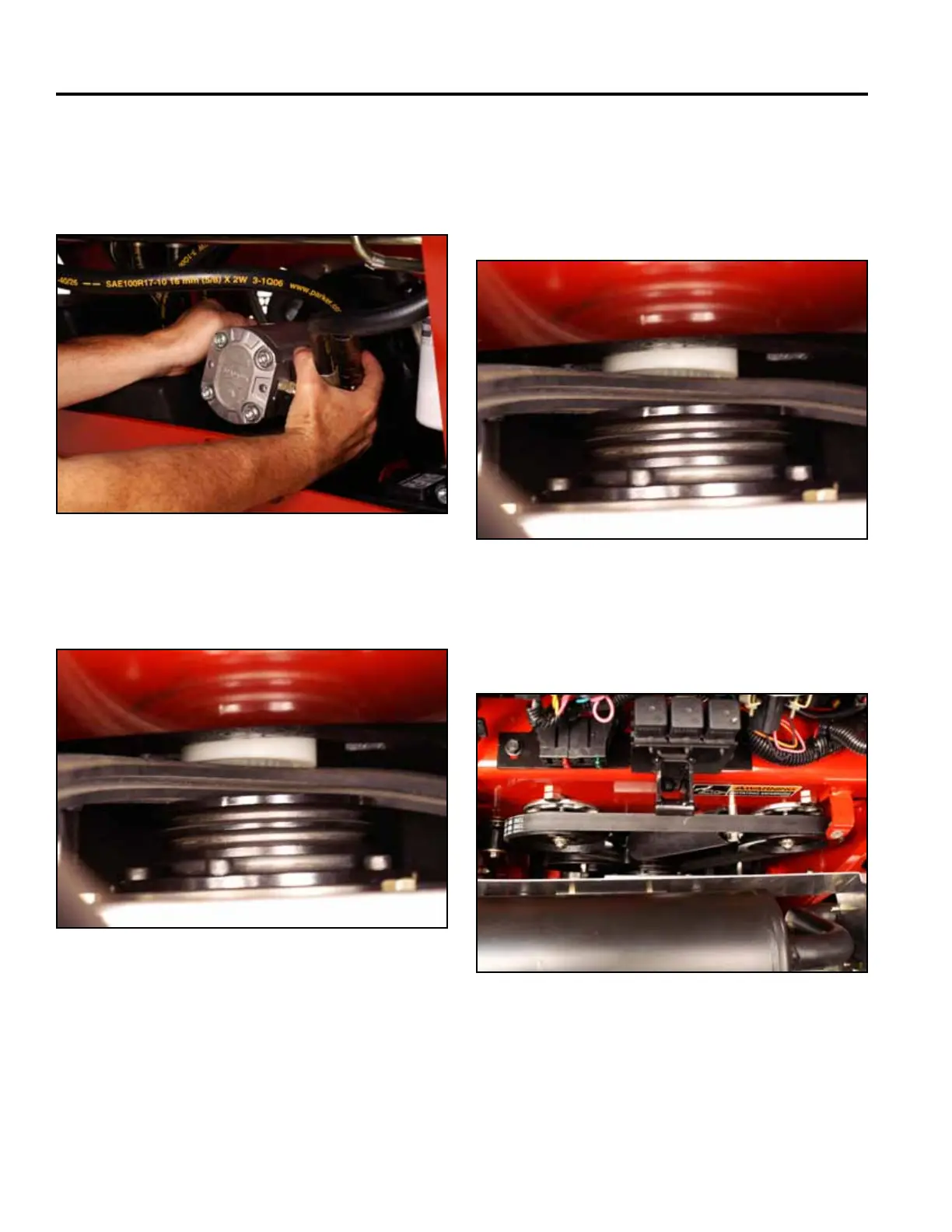

16. Rotate the hydraulic pump clockwise and pull the
hydraulic pump outward to separate the coupling
sleeve and the hub sleeve. This will permit belt
removal (Fig. 1287).
1. Pull the hydraulic pump outward to create enough
clearance between the coupling sleeve and the hub
sleeve to allow for belt installation (Fig. 1289).
Fig 1287 Belt 012
Fig 1289 Belt 015
2. Install the belt onto the engine pulley and the right
and left hydraulic traction pump pulleys (Fig. 1290).
17. Remove the belt (Fig. 1288).
Fig 1290 Belt 014
Fig 1288 Belt 015
