DRIVE SYSTEM
7-7TX525 Service Manual Rev. 000

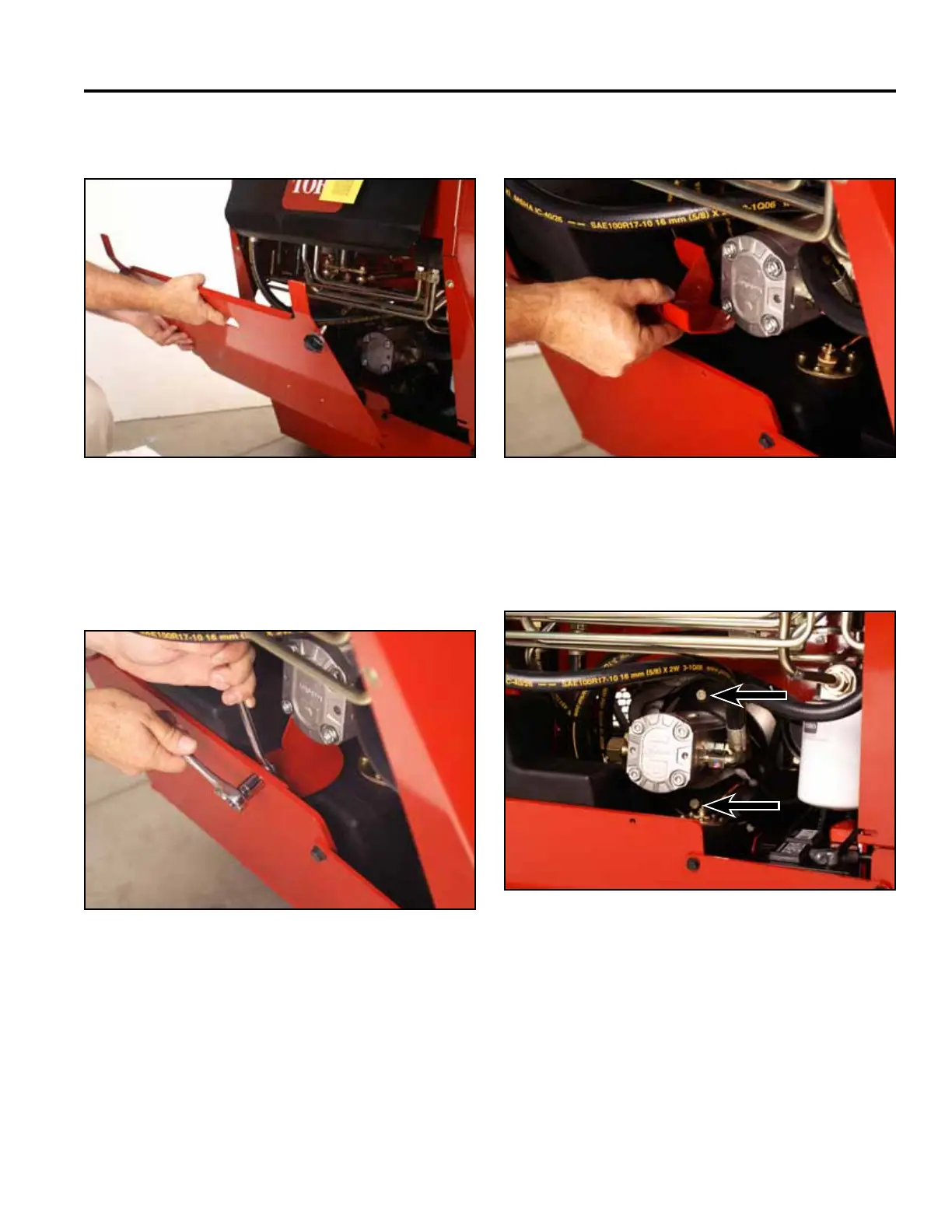

12. Remove the rear access cover (Fig. 1283). 14. Remove the gas tank hold down bracket (Fig. 1285).
Fig 1283 Belt 006 Fig 1285 Belt 010
15. Using a 5/8” socket combination, remove the 2
hydraulic pump mount plate bolts (Fig. 1286).
13. Using a 1/2” wrench and 1/2” socket combination,
remove the gas tank hold down bracket bolt and nut
(Fig. 1284).
Fig 1286 Belt 013
Fig 1284 Belt 009
