DRIVE SYSTEM
7-68 Rev. 000 TX525 Service Manual
Track Replacement
Wide Track Removal
1. Lift the machine. Refer to “Lifting the Machine for
Service” on page 7-1.
2. Stop the engine, and remove the key.
3. Set the parking brake to the ON position.

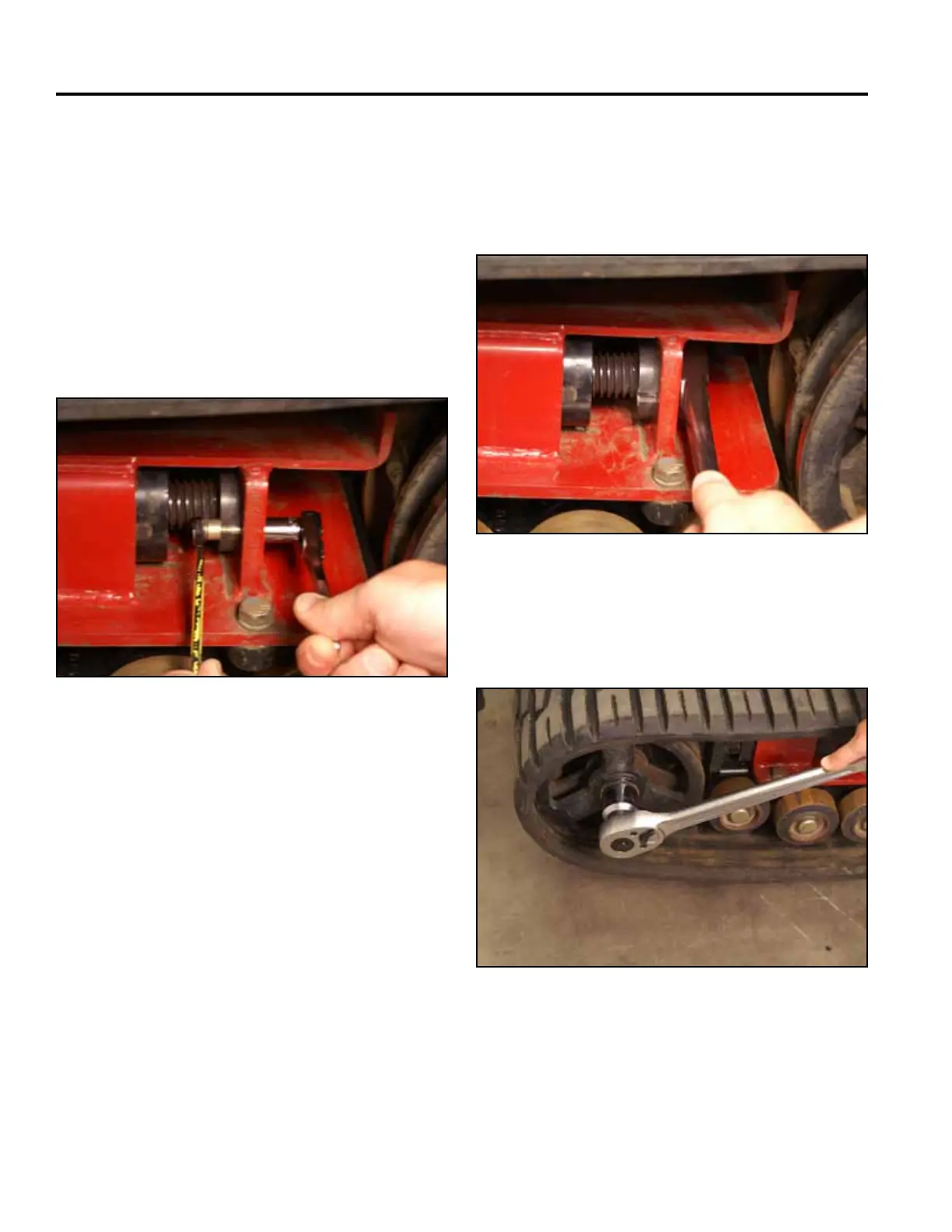

4. Remove the locking bolt, spacer and nut (Fig. 1517).
Fig 1517 PICT-4440
5. Using a 1/2” drive ratchet, release the drive tension
by turning the tensioner bolt clockwise until the
tensioning nut contacts the tensioner bolt head.
Push the tension wheel toward the rear of the unit
(Fig. 1518).
7. Using a 1-1/2” socket, remove the nut securing the
outer tension wheel (Fig. 1519).
Fig 1518 PICT-4441
Fig 1519 PICT-4442
