Toro TX525 - Brake Cable Replacement 280000100 & Higher

BRAKES
8-24 Rev. 000 TX525 Service Manual
Brake Cable Replacement 280000100 &
higher
1. Remove the Brake Assembly from the machine.
Refer to “Brake Assembly Removal 280000100 &
higher” on page 8-18.
2. Remove the convoluted tube from the brake cable
(Fig. 1725).

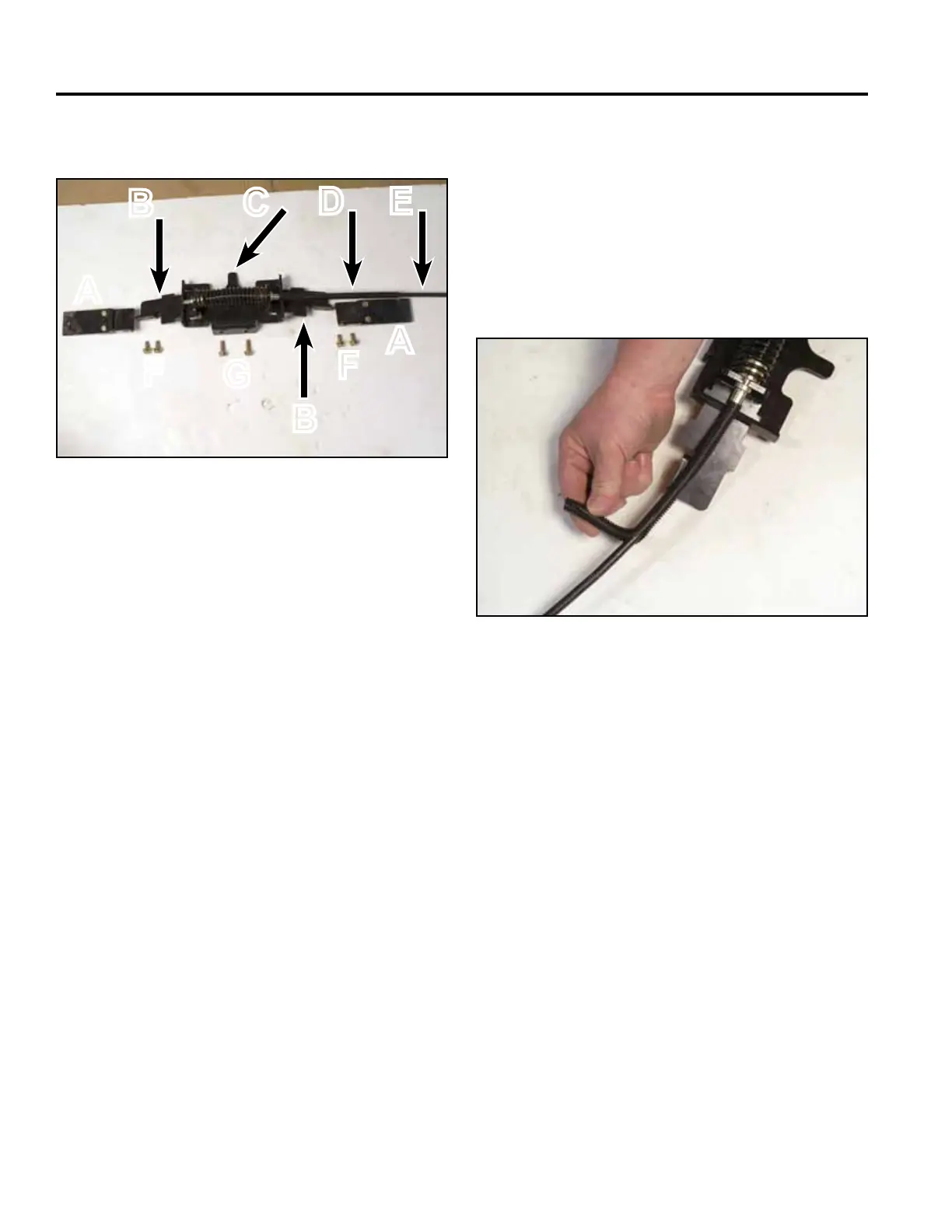

A. Brake plate assembly D. Convoluted tube
(2) (included for photo E. Brake cable assembly
purposes only) F. Brake plate mounting
B. Brake mounting bolts (4)
bracket (2) G. Brake bar support
C. Brake bar support mounting bolts (2)
Fig 1725 PICT-4376a
Brake Assembly (Fig. 1724)
Fig 1724 PICT-4377a
A
B
C
D E
B
F
F
G
A
