DRIVE SYSTEM
7-72 Rev. 000 TX525 Service Manual
Narrow Track Removal
1. Lift the machine. Refer to “Lifting the Machine for
Service” on page 7-1.
2. Raise the loader arms approximately 12” (30.48cm).
3. Stop the engine and remove the key.

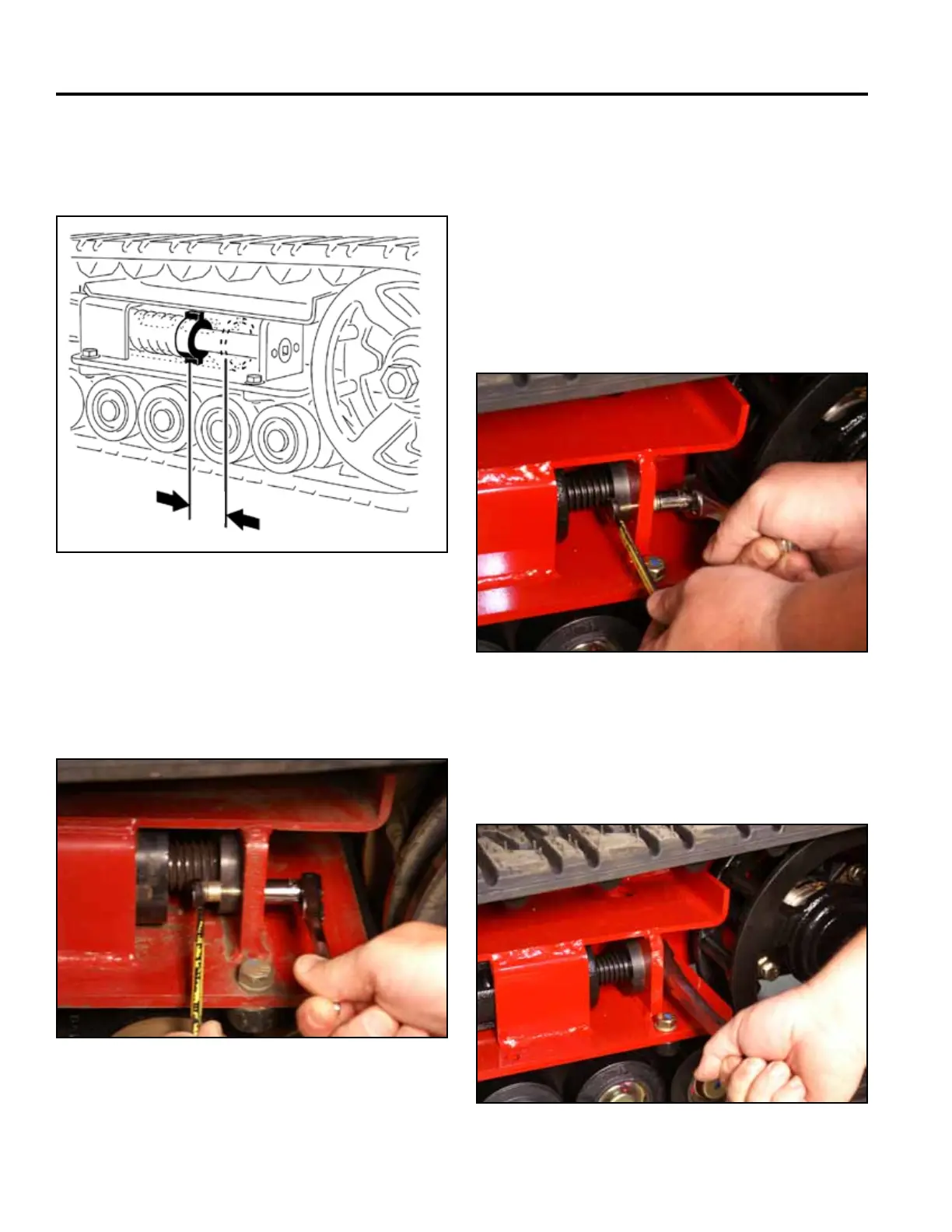

4. Using a 7/16” socket and wrench, remove the lock-
ing bolt and nut (Fig. 1533).
Fig 1533 PICT-5340
5. Using a 1/2 inch drive ratchet, release the drive
tension by turning the tensioning screw clockwise
(Fig. 1534).
Fig 1534 PICT-5341
9. Turn the tensioning screw counter-clockwise until
the distance between the tension nut and the back of
the tension arm is 2-3/4” (7cm) (Fig. 1531).
Fig 1531 g.33m-4775
10. Align the closest notch in the tension screw to the
locking bolt hole and secure the screw with the
locking bolt, spacer and nut (Fig. 1532).
Fig 1532 PICT-4440
A
A. 2-3/4” (7cm)
11. Lower the traction unit to the ground.
To Next Page
