DRIVE SYSTEM
7-82 Rev. 000 TX525 Service Manual
Tensioner Arm Replacement - Wide
Track
Tensioner Arm Removal - Wide Track
1. Lift the machine, refer to “Lifting the Machine for
Service” on page 7-1.
2. Remove the Track. Refer to “Wide Track Removal”
on page 7-68.
3. Raise the loader arms approximately 12” (7cm).
4. Slide the tensioner arm assembly out of the
mainframe (Fig. 1569).
Fig 1569 PICT-4568

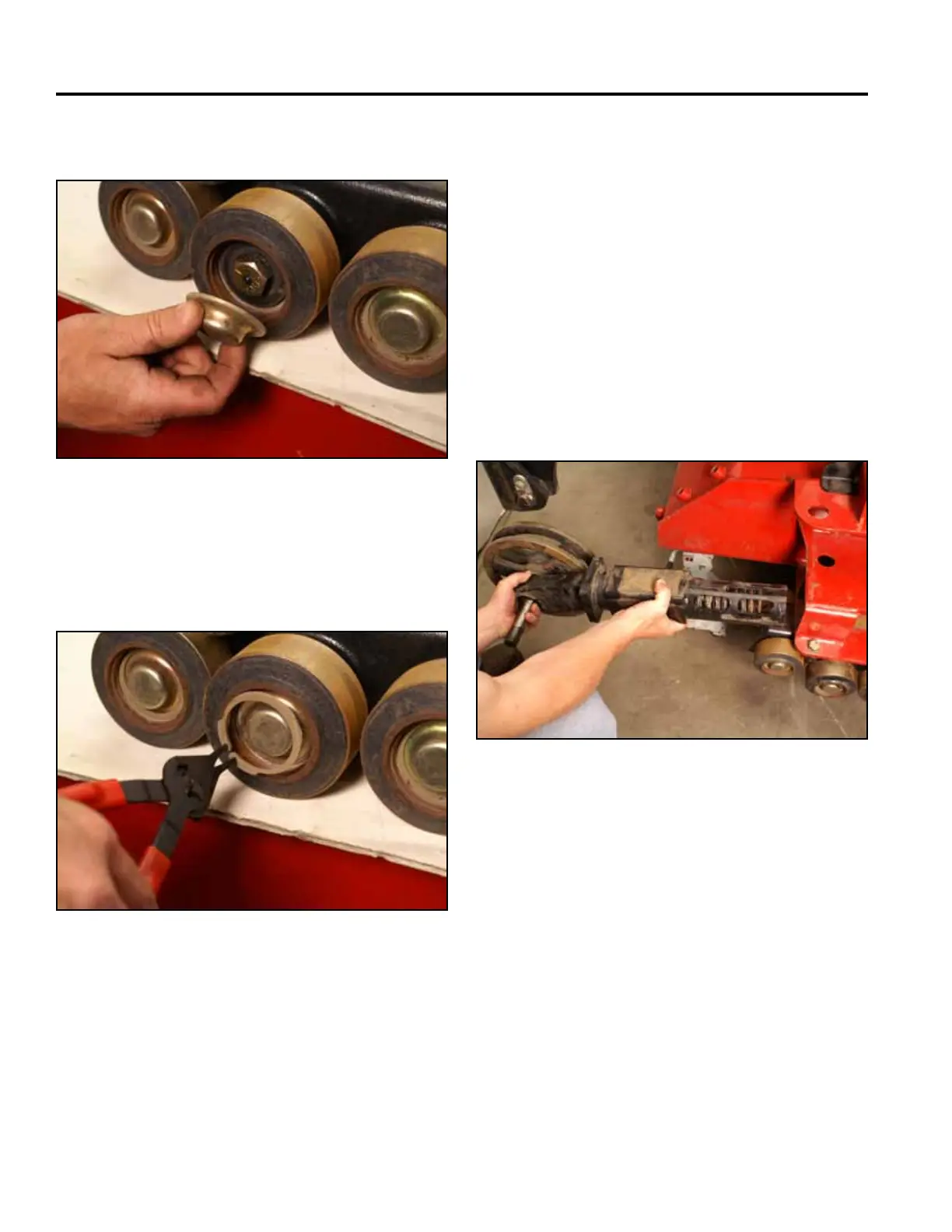

8. Install the road wheel bearing cap (Fig. 1567).
Fig 1567 PICT-4525
9. Install the snap ring securing the wheel bearing cap
totheroadwheelsothattheatsideofthesnap
ring is facing away from the road wheel (Fig. 1568).
Fig 1568 PICT-4524
