Toro TX525 - Cooling Fan Installation

ENGINE
4-38 Rev. 000 TX525 Service Manual

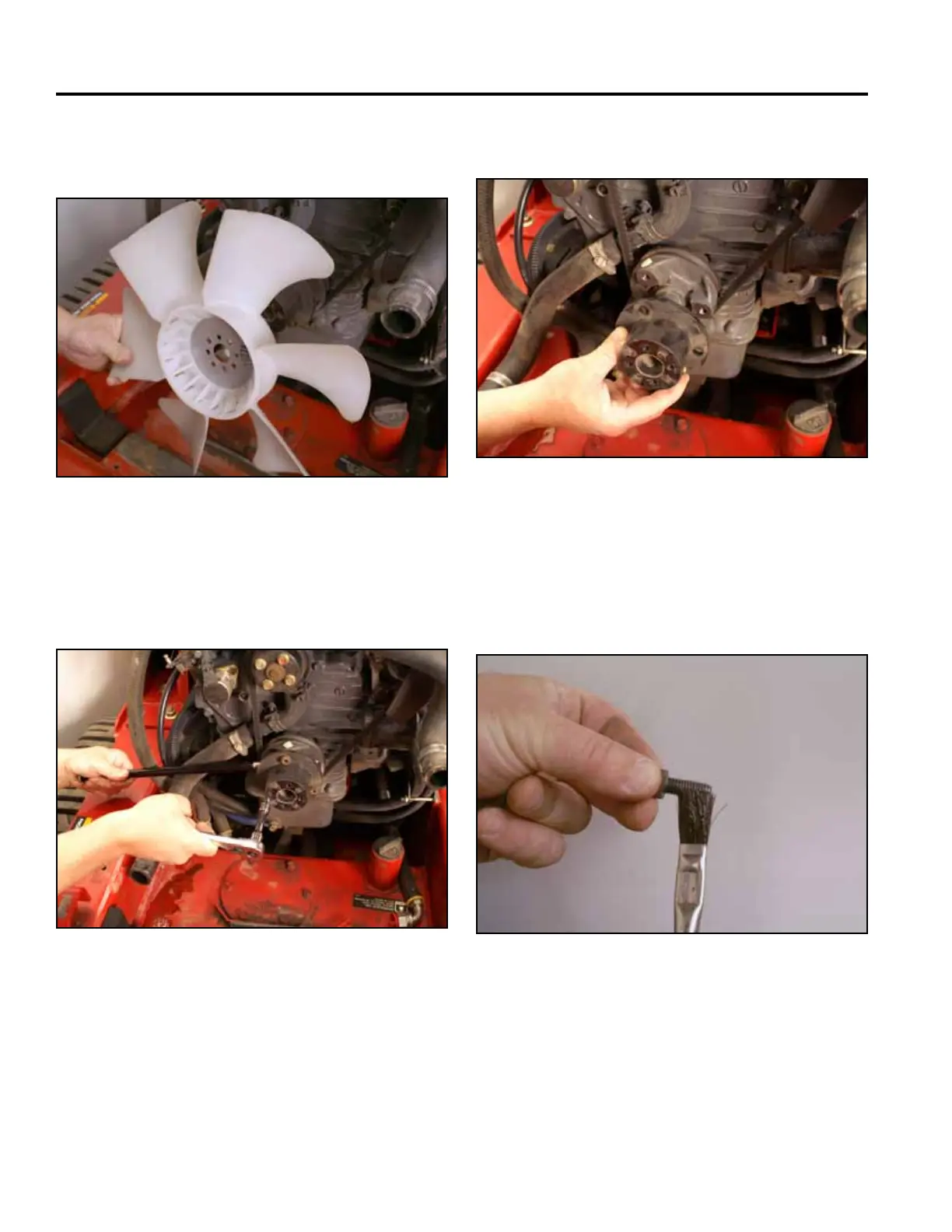

3. Slidethecoolingfanoffthefanmountspacer(Fig.
0213).
Fig 0213 PICT-5113a
4. Securetheywheelsothatitcannotturn.Usea
6mmAllensockettoremovethe3boltssecuringthe
fanmountspacertotheenginecoupler(Fig.0214).
Fig 0214 PICT-5114
Cooling Fan Installation
5. Removethefanmountspacer(Fig.0215).
Fig 0215 PICT-5115
1. Applythreadlockingcompoundtothefanmount
spacermountingbolts(Fig.0216).
Fig 0216 PICT-5116a
