Toro TX525 - Alternator Installation

ENGINE
4-32 Rev. 000 TX525 Service Manual
20. Removethecollarfromthealternator(Fig.0192).

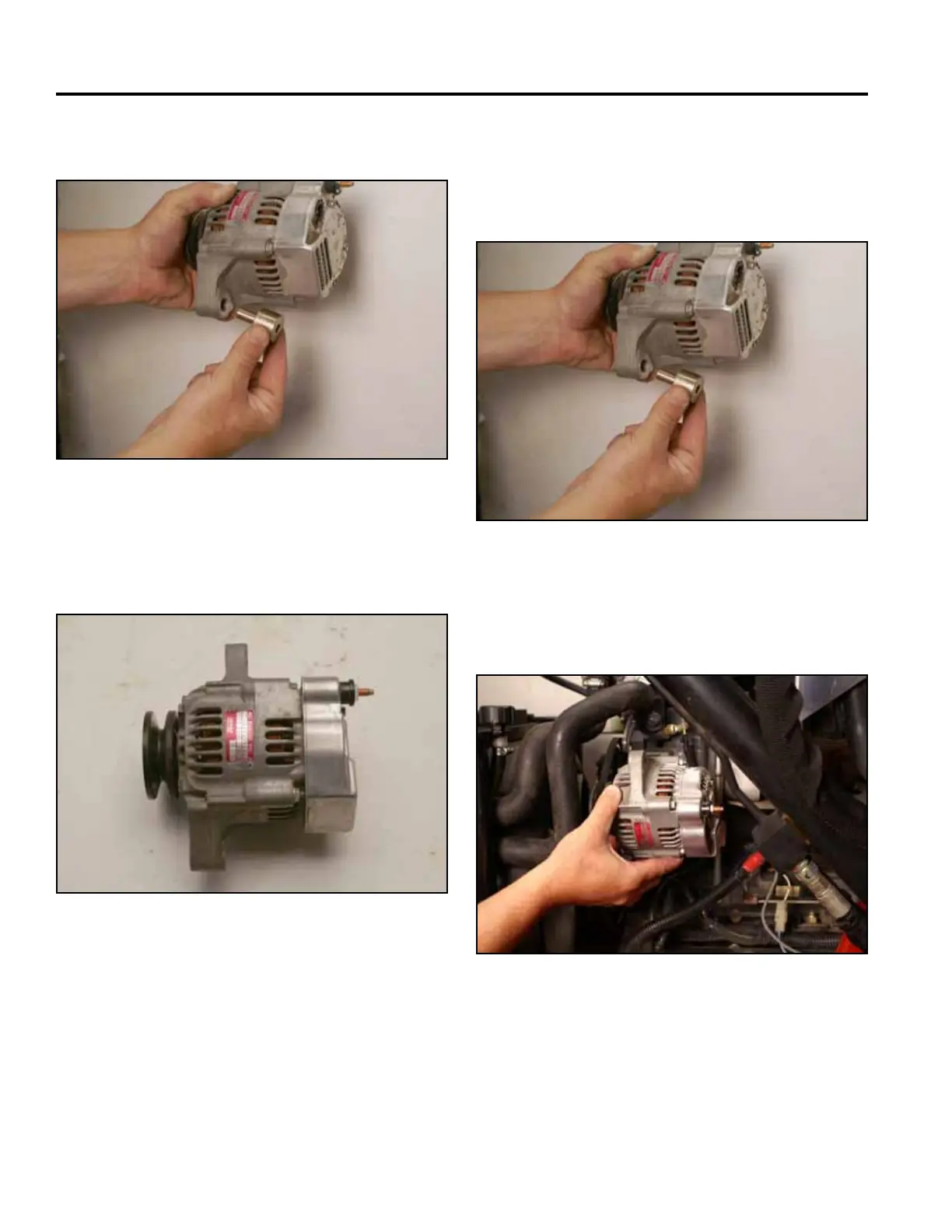

Fig 0192 PICT-5180a
Alternator Installation
21. Toservicethealternator,referto“Alternator
AssemblyTeardown”onpage4-153(Fig.0193).
2. Positionthealternatoruptotheengineblock(Fig.
0195).
Fig 0193 PICT-5181a
Fig 0195 PICT-5179
1. Slidethecollarintothemountingangeonthe
alternator(Fig.0194).
Fig 0194 PICT-5180av
