Toro TX525 - Belt Replacement; Belt Removal

DRIVE SYSTEM
7-5TX525 Service Manual Rev. 000
Belt Replacement
Belt Removal
1. Positionthetractionunitonaatsurface.
2. Remove the ignition key.
3. Apply the parking brake.
4. Raise the hood.
5. Remove the hairpin cotter from the hood prop rod
(Fig. 1276).
6. Support the hood and remove the prop rod (Fig.
1277).

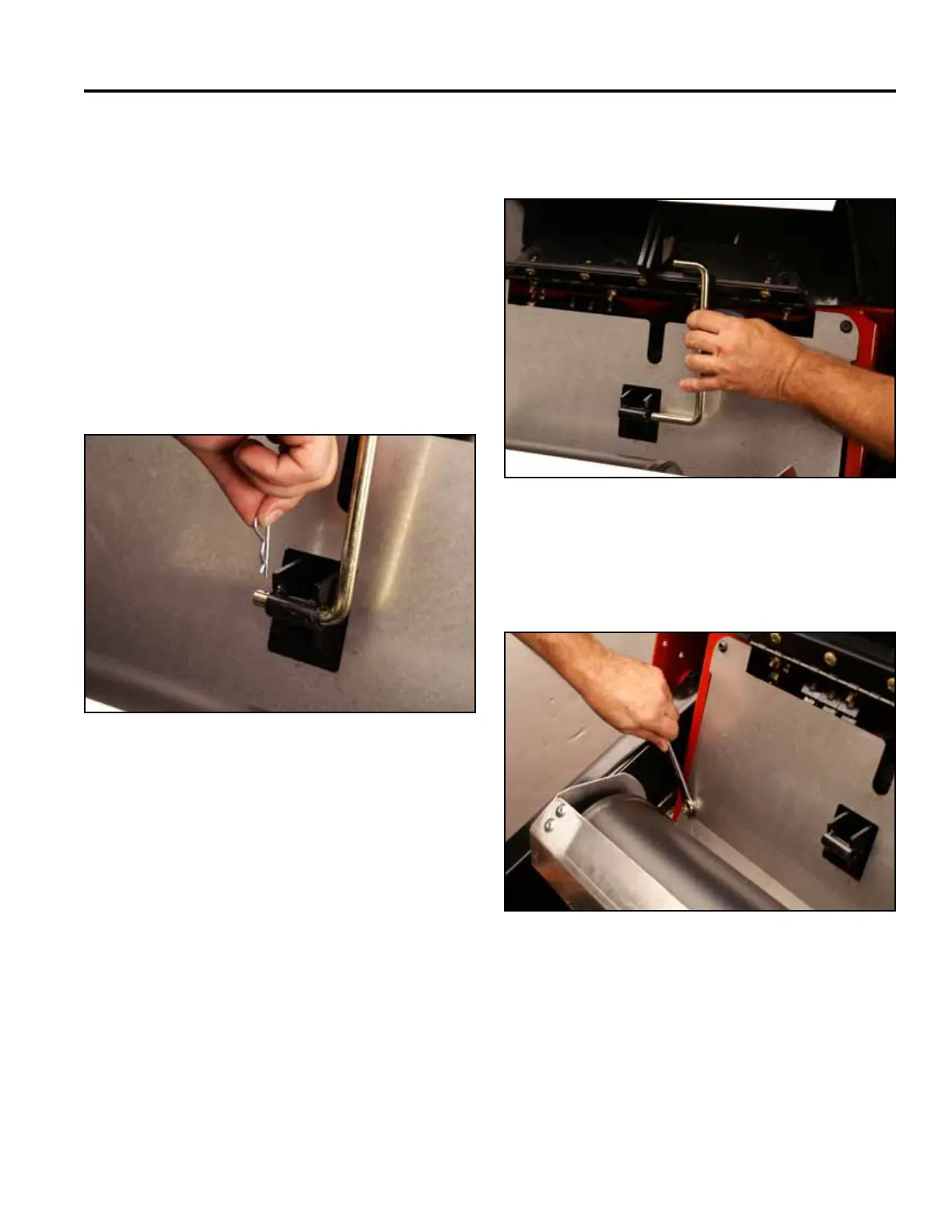

Fig 1276 Belt 001
Fig 1277 Belt 003
7. Using a 1/2” wrench, remove the 2 lower heat shield
screws (Fig. 1278).
Fig 1278 Belt 002
