DRIVE SYSTEM
7-6 Rev. 000 TX525 Service Manual

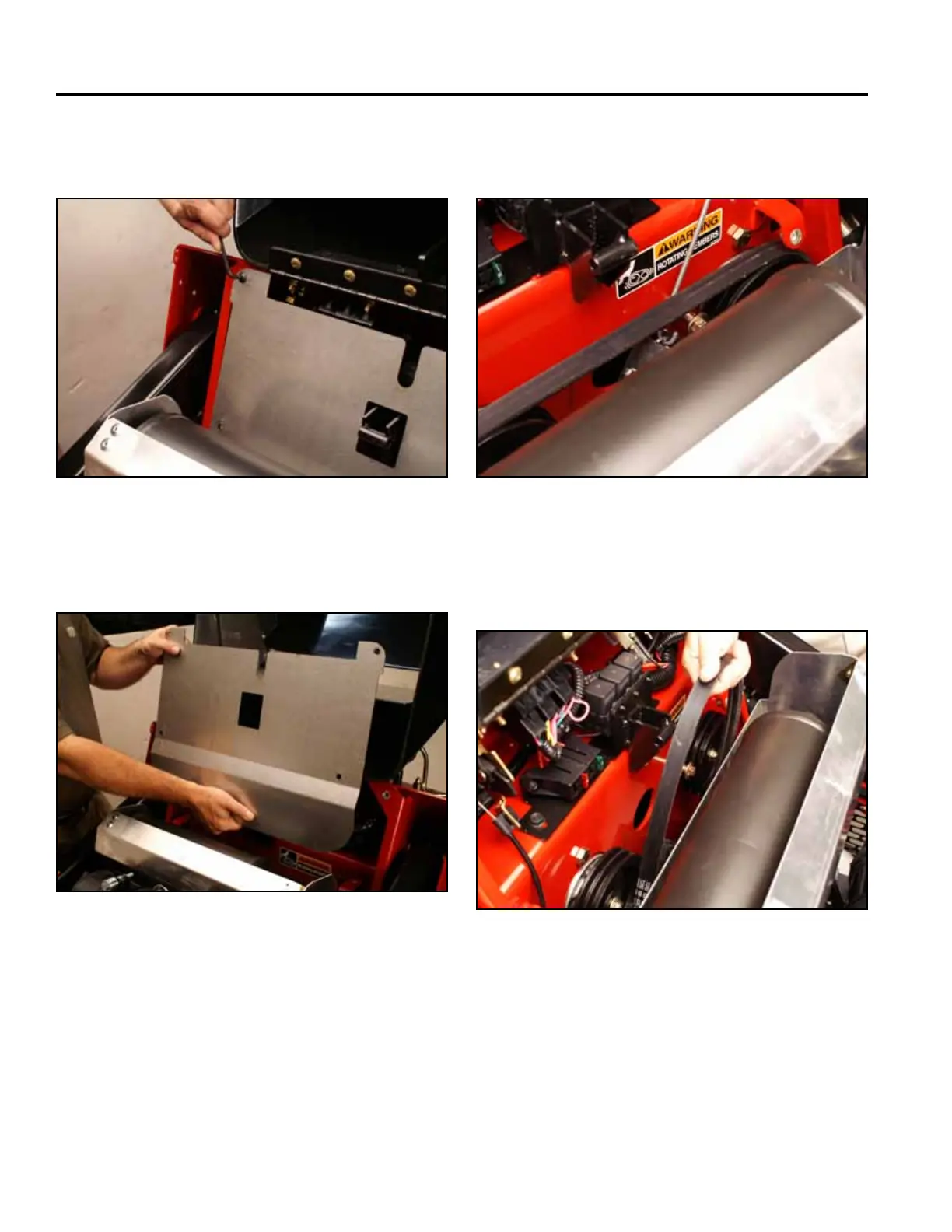

8. Using a 3/16” Allen wrench, remove the 2 upper heat
shield screws (Fig. 1279).
10. Using a spring tool, remove the idler spring from its
post (Fig. 1281).
Fig 1279 Belt 004 Fig 1281 Belt 007
11. Remove the belt from the right and left hydraulic
traction pump pulleys (Fig. 1282).
9. Remove the heat shield (Fig. 1280).
Fig 1282 Belt 008
Fig 1280 Belt 005
