Toro TX525 - Tandem Pump; Engine Coupling Assembly Replacement; Coupling Removal

HYDRAULIC SYSTEM
6-19TX525 Service Manual Rev. 000
Coupling Removal
22. Using a 3/8” socket, install 4 screws securing the top
left panel to the control panel (Fig. 0901).

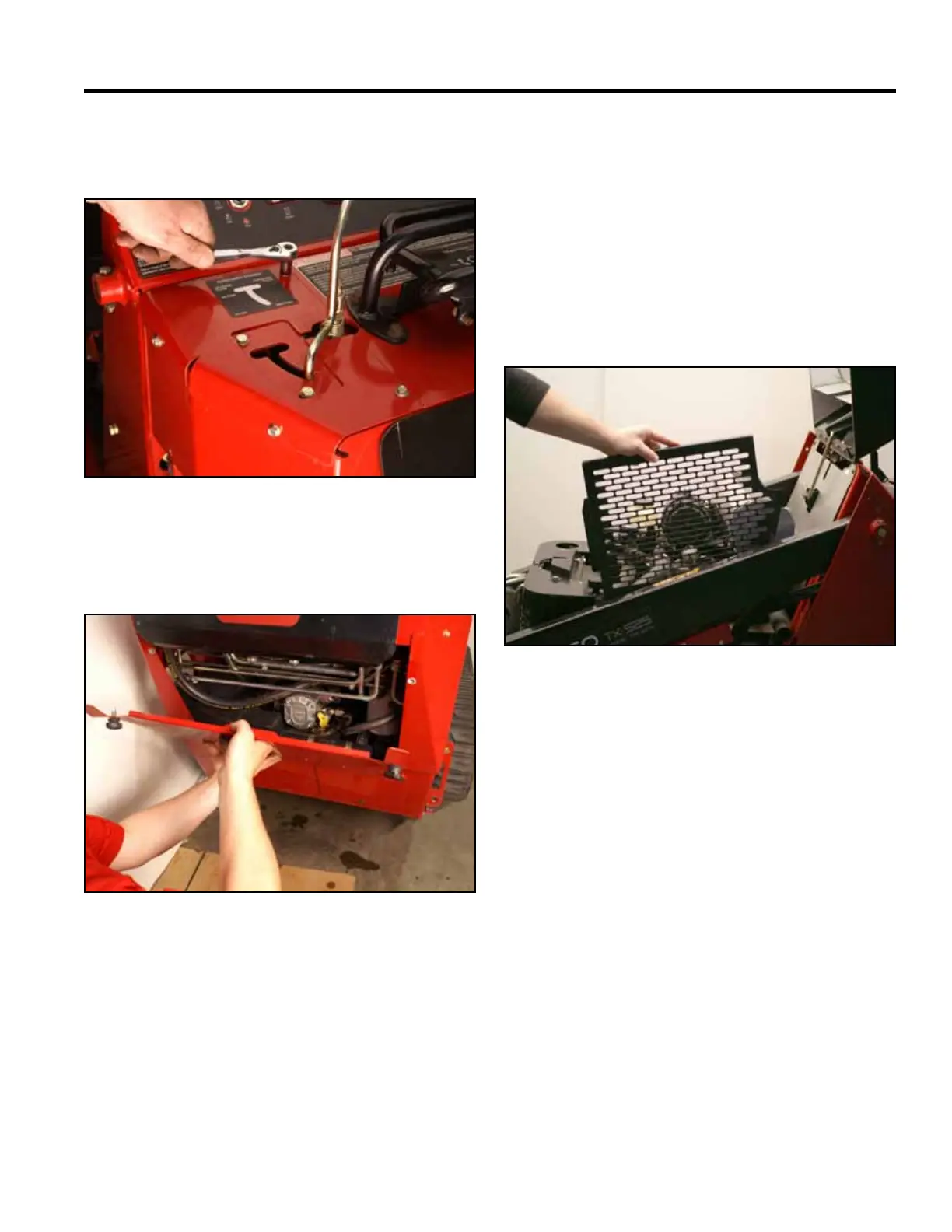

Fig 0901 PICT-4600
23. Install the rear access panel (Fig. 0902).
Fig 0902 PICT-4505a
Tandem Pump / Engine Coupling
Assembly Replacement
1. Remove the Hydraulic Tandem Pump. Refer to
“Hydraulic Tandem Pump Removal” on page 6-30.
2. Raise the hood and remove the left side grill (Fig.
0903).
Fig 0903 PICT-6962a
