DRIVE SYSTEM
7-70 Rev. 000 TX525 Service Manual

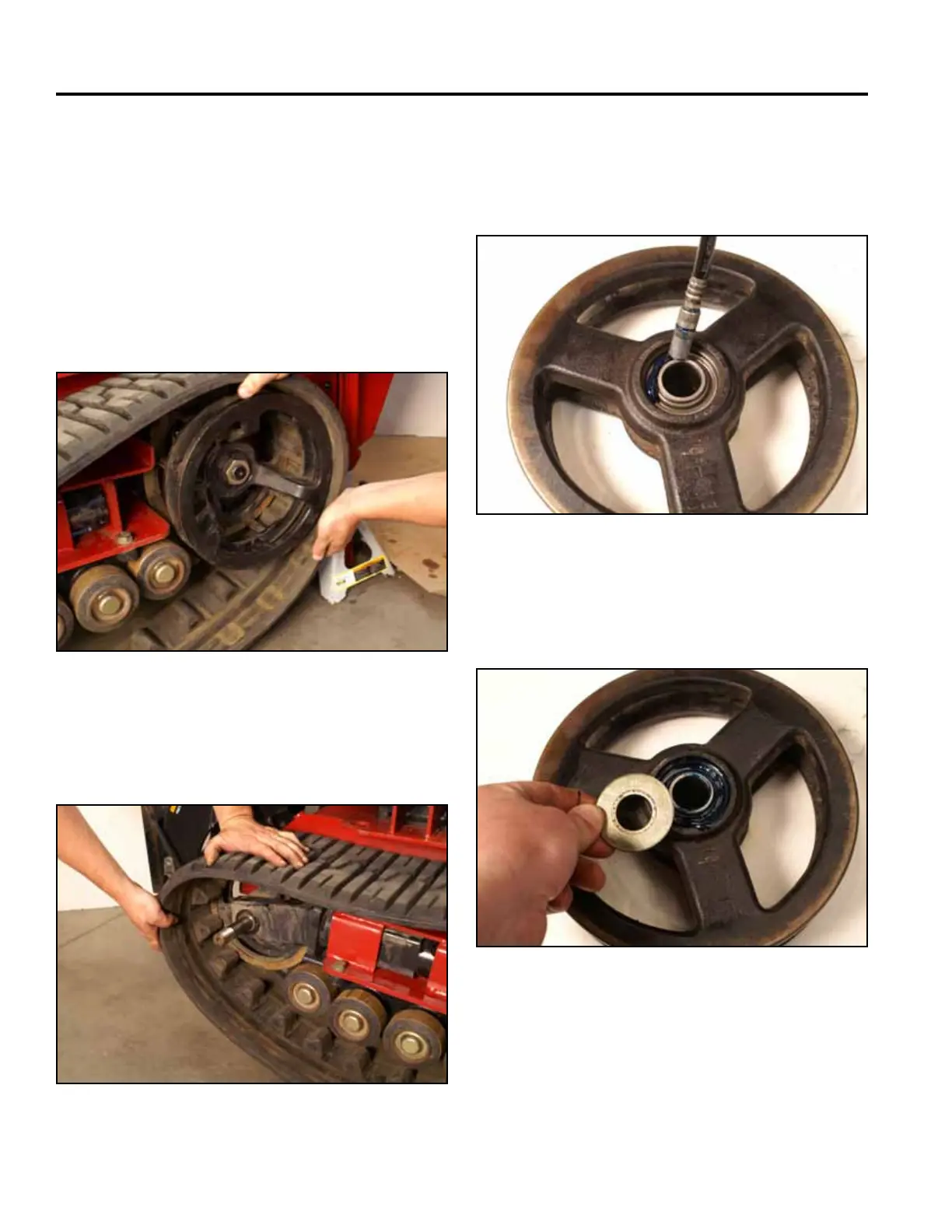

3. Ensure old grease and dirt are cleaned out of the
area between the two washers and the bearings on
the outside tensioner wheel. Fill the area on one side
of the wheel with grease (Fig. 1525).
Fig 1525 PICT-4497
4. Install the large washer onto the wheel over the
grease (Fig. 1526).
Fig 1526 PICT-4498
Wide Track Installation
Important: Before installing the track, use the
Alignment Tool, Toro P/N 110-0069, for proper
alignment between the drive sprocket and the
front tension wheel. Refer to “Track Guide
Alignment” on page 7-3.
1. Install the track, ensuring that the lugs in the track
tbetweenthespacersinthemiddleofthedrive
sprocket (Fig. 1523).
Fig 1523 PICT-4495
2. Install the track over the inside tensioner wheel (Fig.
1524).
Fig 1524 PICT-4496
