Toro TX525 - Starter Assembly Rebuild

ENGINE
4-180 Rev. 000 TX525 Service Manual
Starter Assembly Rebuild

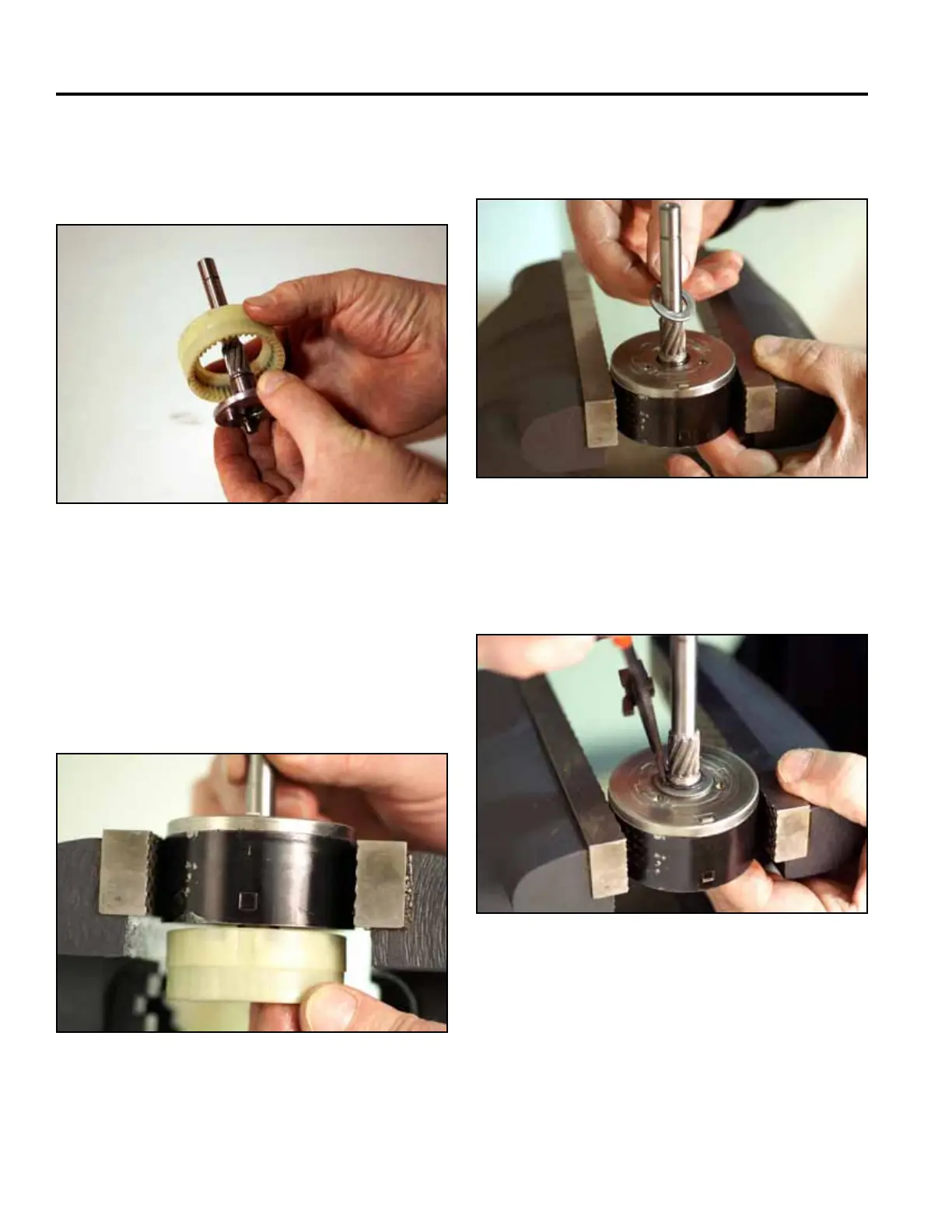

1. Slidetheshaftintothegear(Fig.0758).
4. Whilesupportingtheshaft,slideawasherontothe
shaft(Fig.0760).
Fig 0758 PICT-8085a
Fig 0760 PICT-8090a
5. Whilesupportingtheshaft,installasnapring(Fig.
0761).
2. Securethebearingassemblyinavise.
3. Inserttheshaft/gearassemblyintothebearing
assembly(Fig.0759).
Note: There is a tab on the gear and bearing for
alignment.
Fig 0761 PICT-8092a
Fig 0759 PICT-8088
