Toro TX525 - Alternator Reassembly

ENGINE
4-163TX525 Service Manual Rev. 000
Alternator Reassembly

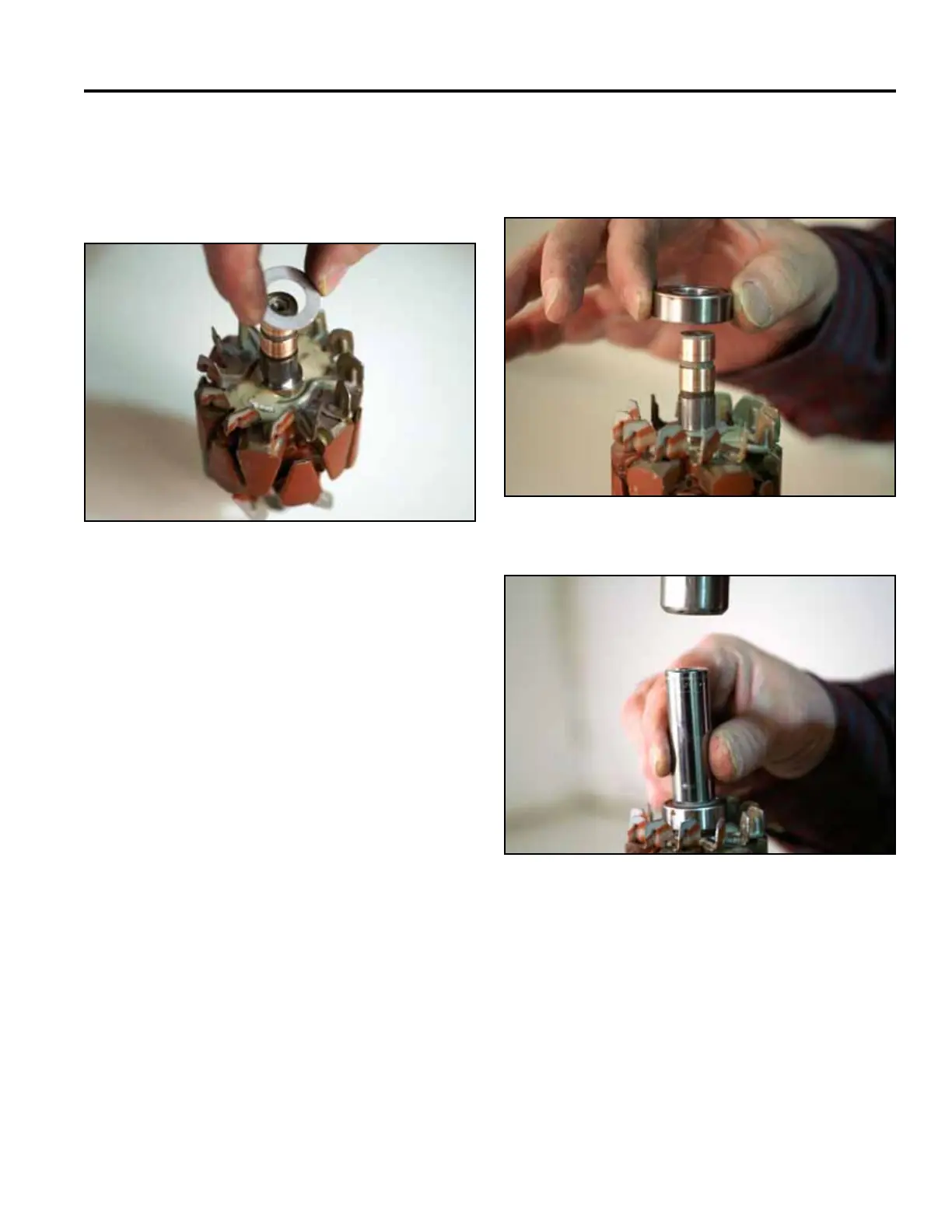

1. Slideawasherontotheslipringendoftherotor
shaft(Fig.0695).
Fig 0695 PICT-8225a
2. Pressabearing(smallerODthanthedriveend
framebearing)ontotheslipringendoftherotor
shaft(Fig.0696andFig.0697).
Fig 0696 PICT-8227
Fig 0697 PICT-8230a
