4-164 Rev. 000 TX525 Service Manual

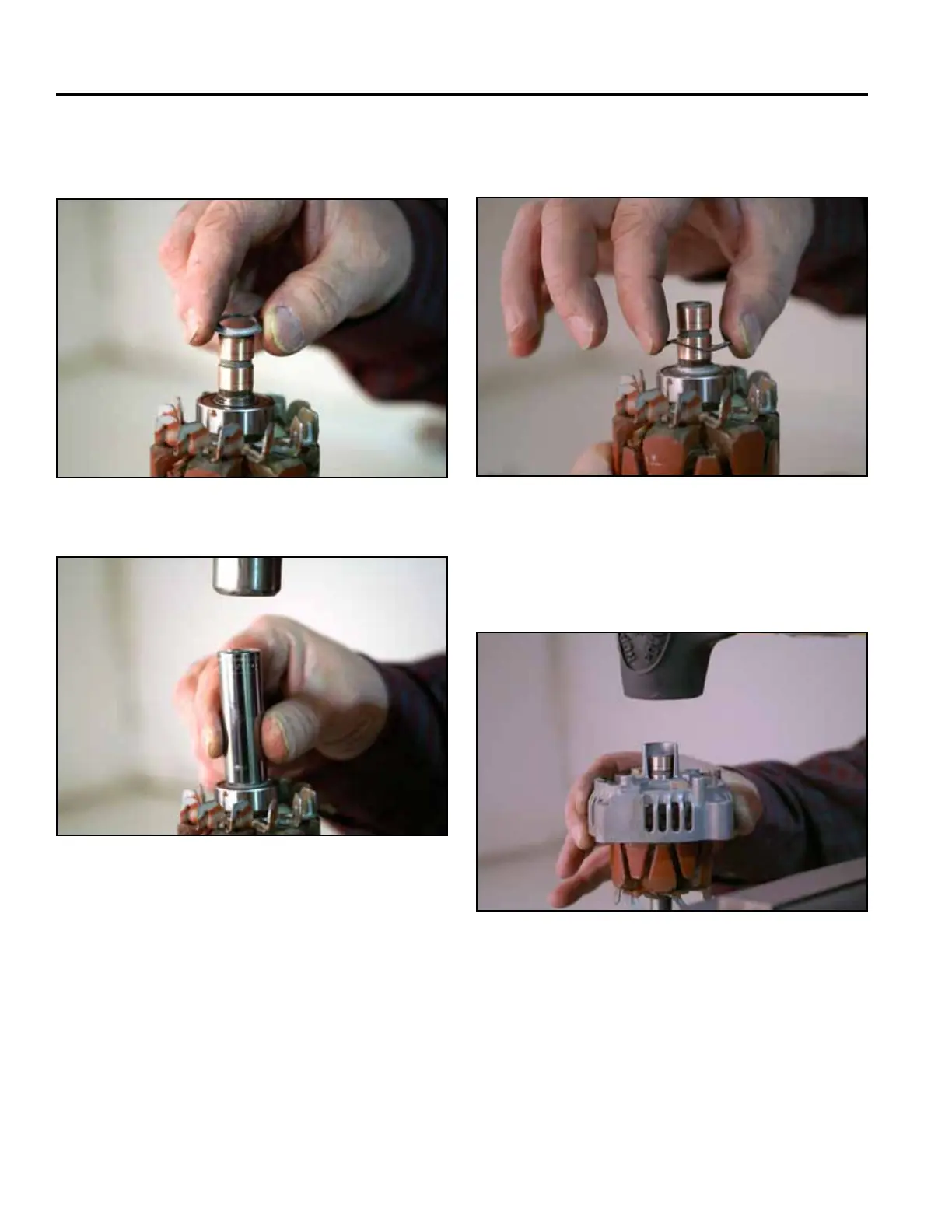

3. Installabearingcoverontotherotorshaftoverthe
bearing(Fig.0698andFig.0699).
Fig 0698 PICT-8229a
Fig 0699 PICT-8230a
4. Slideawavewasherontotheslipringendofthe
rotorshaft(Fig.0700).
Fig 0700 PICT-8231a
5. Installtheslipringshaftendoftherotorassembly
intotherearendframe(Fig.0701).
Fig 0701 PICT-8232a
