Toro TX525 - Loader Valve Rebuild

HYDRAULIC SYSTEM
6-72 Rev. 000 TX525 Service Manual
Loader Valve Rebuild
1. Before disassembly of any hydraulic component, use
a clean, dirt-free work surface and clean solvent to
prevent system contamination (Fig. 1104).
1. Remove the cable tie from around the rubber
bellows (Fig. 1105).

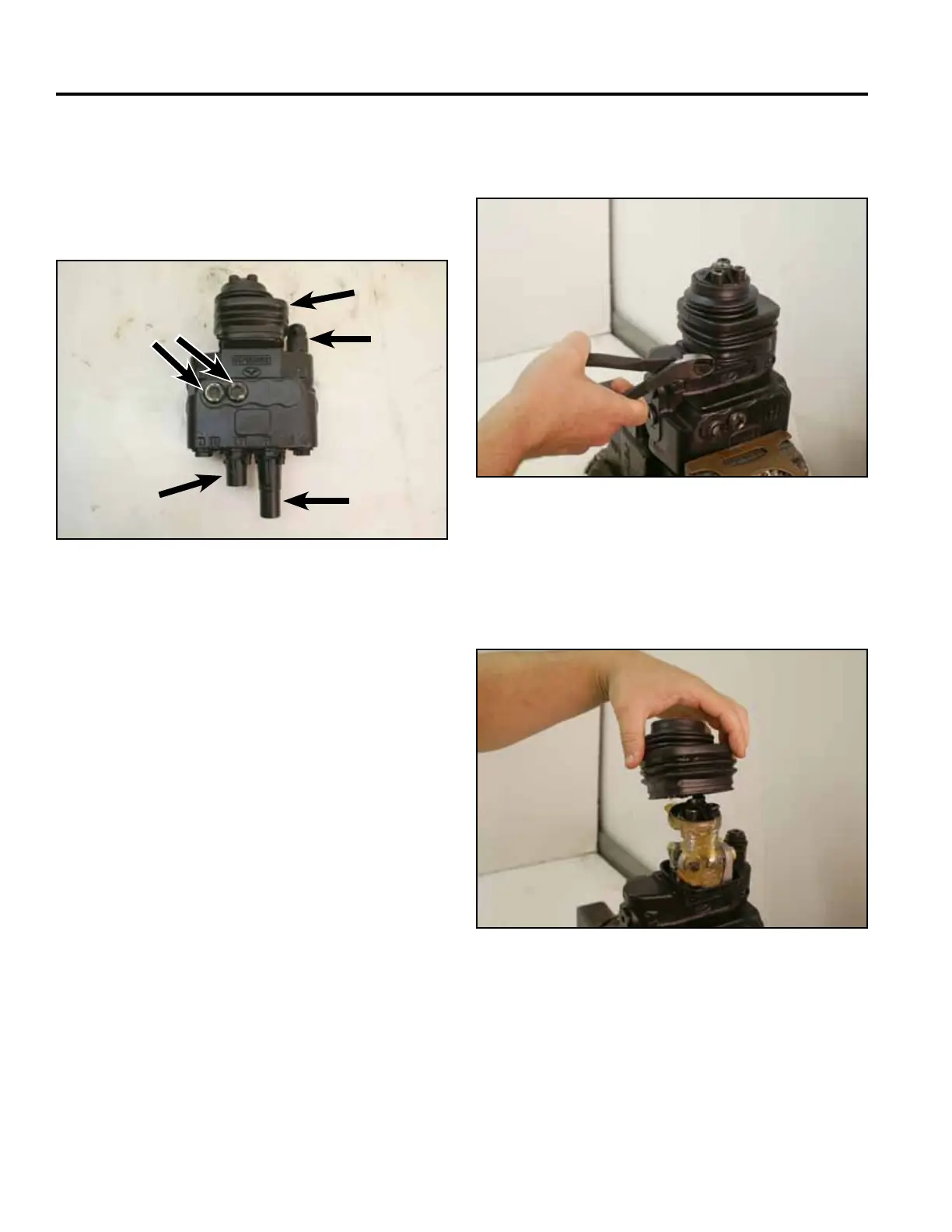

Fig 1104 PICT-2583
Fig 1105 PICT-2588a
2. Remove the rubber bellows from the valve assembly
(Fig. 1106). Wipe the excess grease from the joy-
stick.
Fig 1106 PICT-2589a
A. Rubber Bellows D. Spring Cap
B. System relief E. Detent spring cap
C. Work port relief (2)
A
B
C
D E
