Toro TX525 - Drive System; Lifting the Machine for Service

DRIVE SYSTEM
7-1TX525 Service Manual Rev. 000

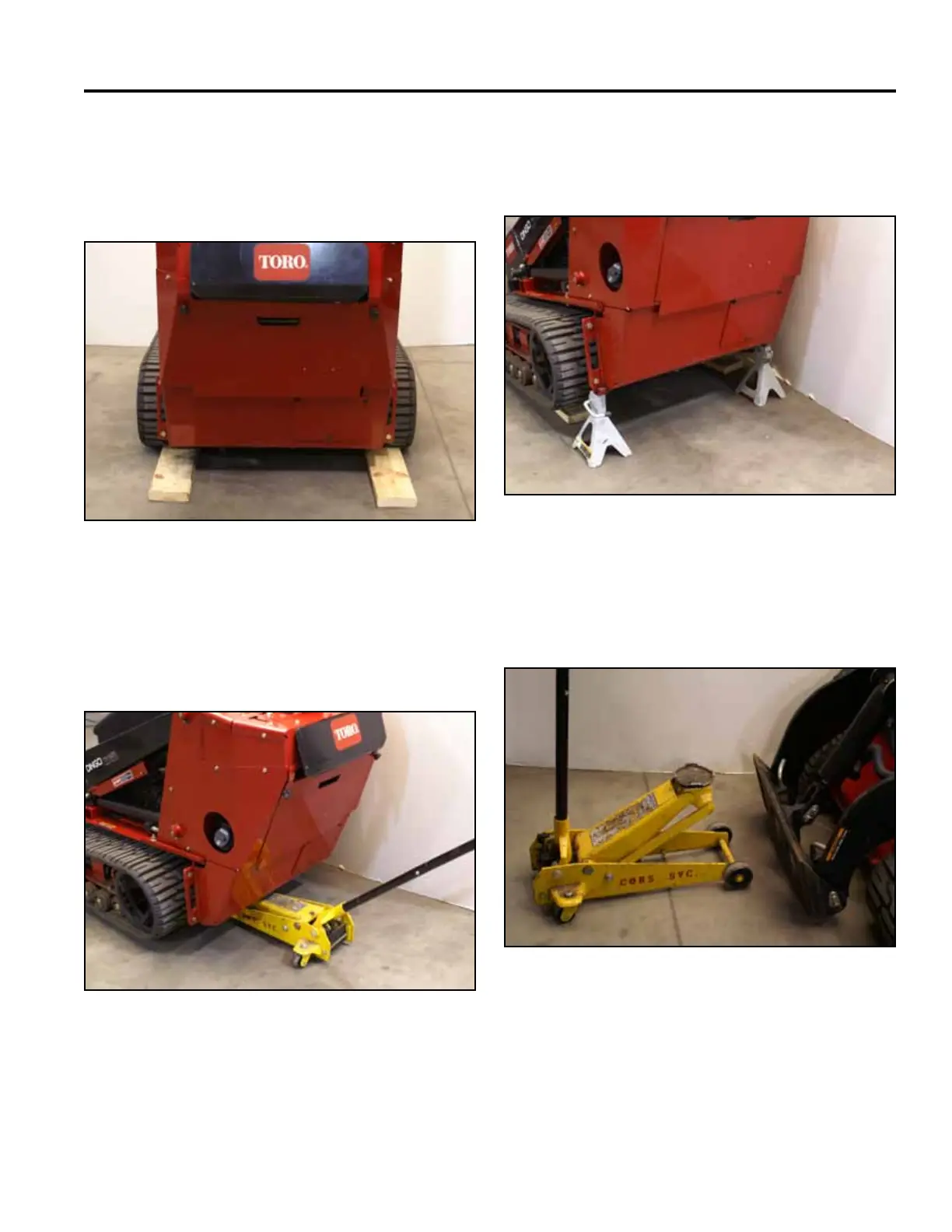

Lifting the Machine for Service
1. Place two pieces of approximately 2” (5.08cm) thick
wood blocks directly behind both tracks (Fig. 1261).
4. Raise the rear of the machine, remove the two wood
blocks and place a jack stand under each corner of
the frame (Fig. 1263).
Fig 1261 PICT-4245
Fig 1263 PICT-4248
5. Raisethehydraulicoorjackapproximately15”
(38.10cm) and position it at the front of the machine
(Fig. 1264).
2. Back the machine up onto the wood blocks.
3. Placeahydraulicoorjackundertherearframeof
the machine (Fig. 1262).
Fig 1264 PICT-4249
Fig 1262 PICT-4247
