Toro TX525 - Brake Plate Installation

BRAKES
8-36 Rev. 000 TX525 Service Manual

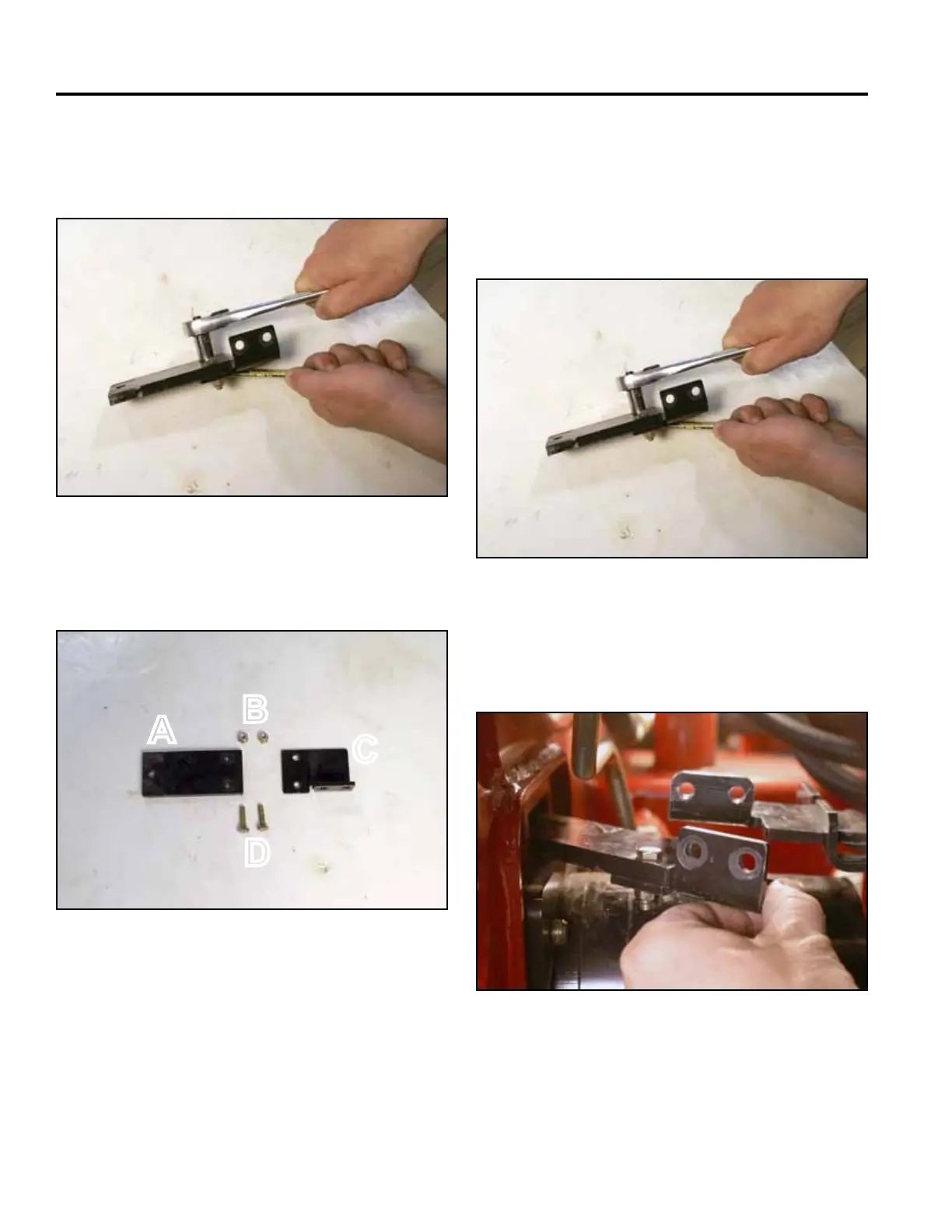

Brake Plate Installation
Brake Plate Assembly (Fig. 1768)
Fig 1768 PICT-4380a
1. Align the brake plate with the brake link bar. Using
a 7/16” socket and wrench, install 2 bolts and nuts
securing the brake plate to the brake link bar (Fig.
1769).
A. Brake Plate C. Brake link bar
B. Nut (2) D. Bolt (2)
16. Using a 7/16” socekt and wrench, remove the 2 bolts
and nuts securing the brake plate to the brake link
bar (Fig. 1767).
Fig 1769 PICT-4379a
Fig 1767 PICT-4379a
2. With the brake handle in the Off position, slide the
brake plate assembly into the frame (Fig. 1770).
Fig 1770 PICT-4387a
A
B
C
D
