DRIVE SYSTEM
7-75TX525 Service Manual Rev. 000
Track Guide Replacement
Track Guide Removal
1. Lift the machine, refer to “Lifting the Machine for
Service” on page 7-1.
2. Remove the track. Refer to “Wide Track Removal”
on page 7-68, or “Narrow Track Removal” on page
7-72.
3. Raise the loader arm approximately 12” (30cm).
Secure the loader arms.

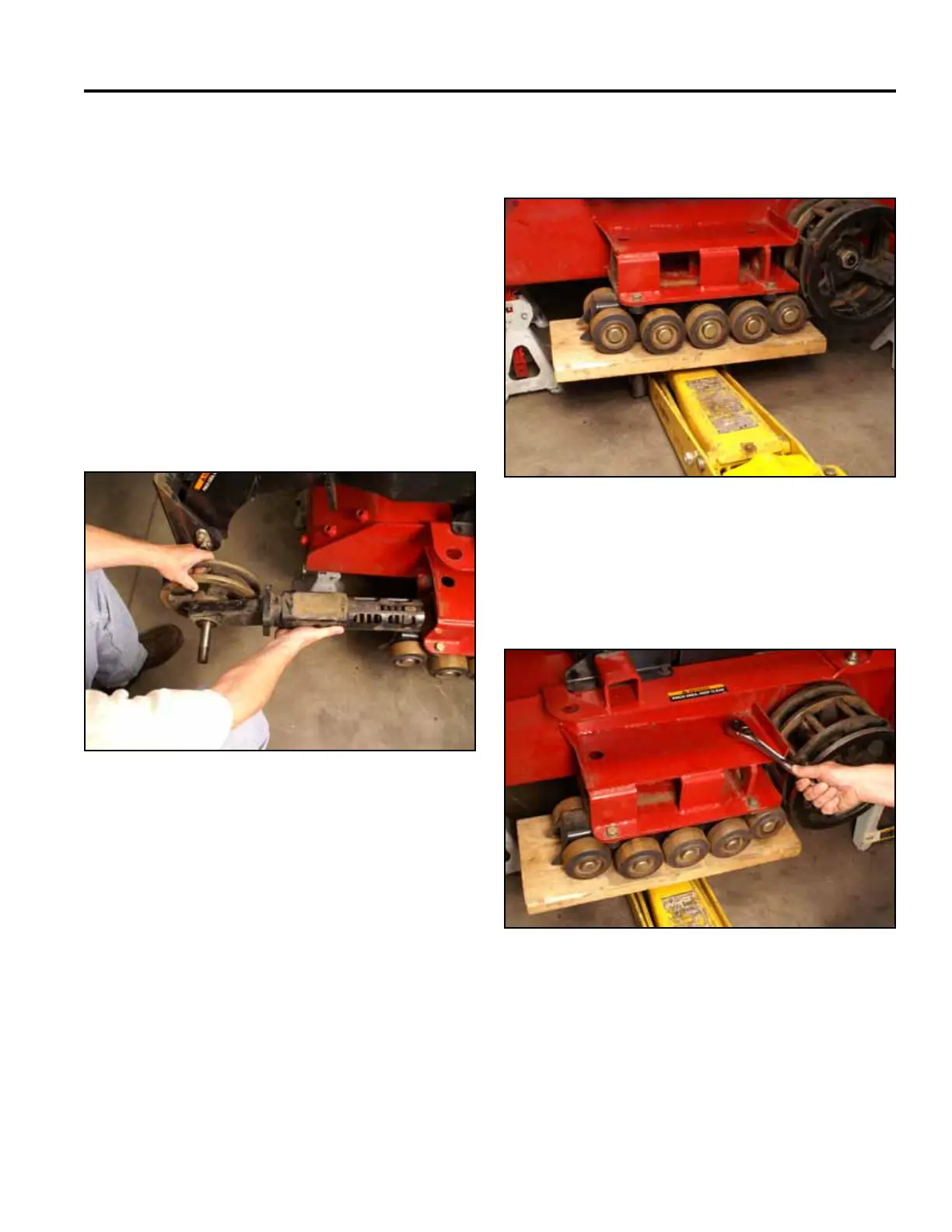

4. Slide the tensioner arm out of the mainframe (Fig.
1542).
Fig 1542 PICT-4520
5. Installahydraulicoorjackandasuitableboard
under the track guide for support (Fig. 1543).
Fig 1543 PICT-4521
6. Using a 3/4” socket, remove the 4 bolts and lock
washers holding the track guide to the mainframe
(Fig. 1544).
Fig 1544 PICT-4522
