DRIVE SYSTEM
7-15TX525 Service Manual Rev. 000
Idler Arm Assembly Installation

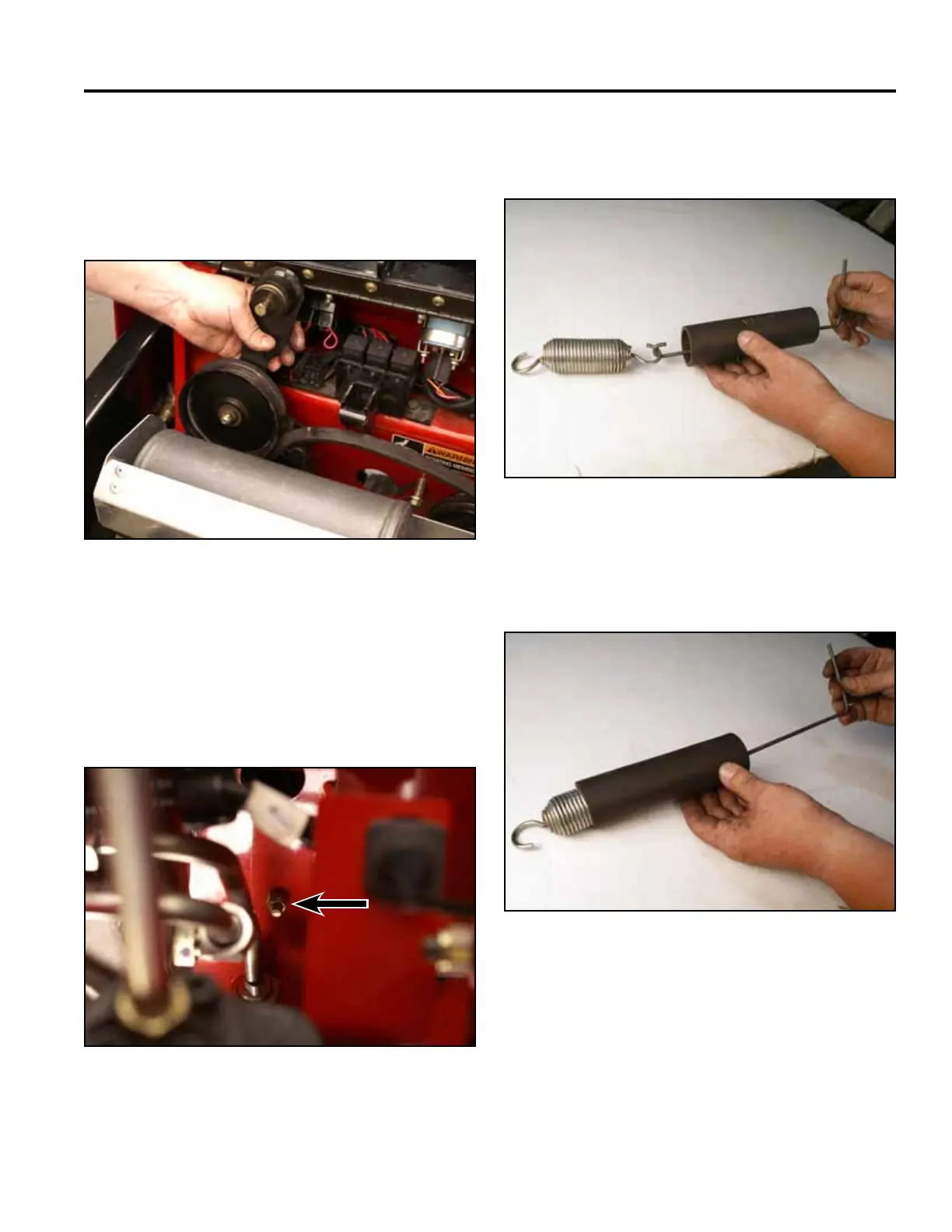

1. Position the idler arm assembly in the unit so the
drive belt is routed between the pulley and the idler
arm spring post (Fig. 1313).
3. Slide a spring tool through the rubber spring retainer.
Hook the idler spring to the spring tool (Fig. 1315).
Fig 1313 PICT-5373
Fig 1315 PICT-5376a
4. Pull the idler spring approximately half way into the
rubber spring retainer (Fig. 1316).
2. Slide the idler arm down and position it against the
tower, inserting the idler mounting bolt through the
mounting hole in the tower. Using a 1/2” socket and
wrench, install a nut onto the idler assembly bolt
securing it to the tower. Ensure the idler arm rotates
freely (Fig. 1314).
Fig 1316 PICT-5377a
Fig 1314 PICT-5370
To Next Page
