DRIVE SYSTEM
7-16 Rev. 000 TX525 Service Manual
5. Hook the idler spring to the idler arm spring post
(Fig. 1317).
8. Position the right hand support panel to the tower.
Using a 3/8” socket, install 3 screws to secure the
right hand support panel to the tower assembly (Fig.
1319).

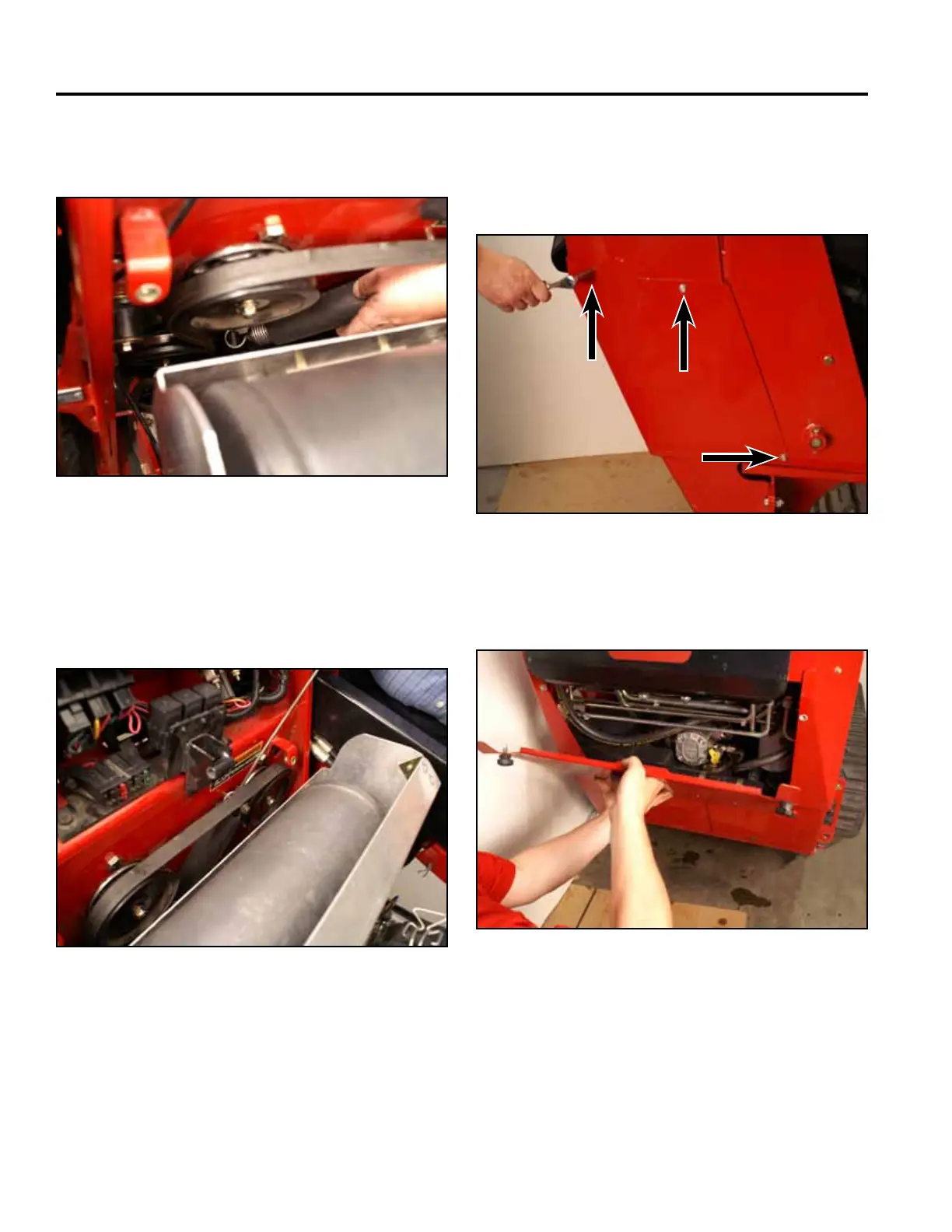

Fig 1317 PICT-5378
Fig 1319 PICT-4504
9. Install the rear access panel (Fig. 1320).
6. Align the belt with the idler pulley.
7. Using a spring tool, install the idler spring onto its
post (Fig. 1318).
Fig 1320 PICT-4505a
Fig 1318 PICT-5379
