Track Guide Installation

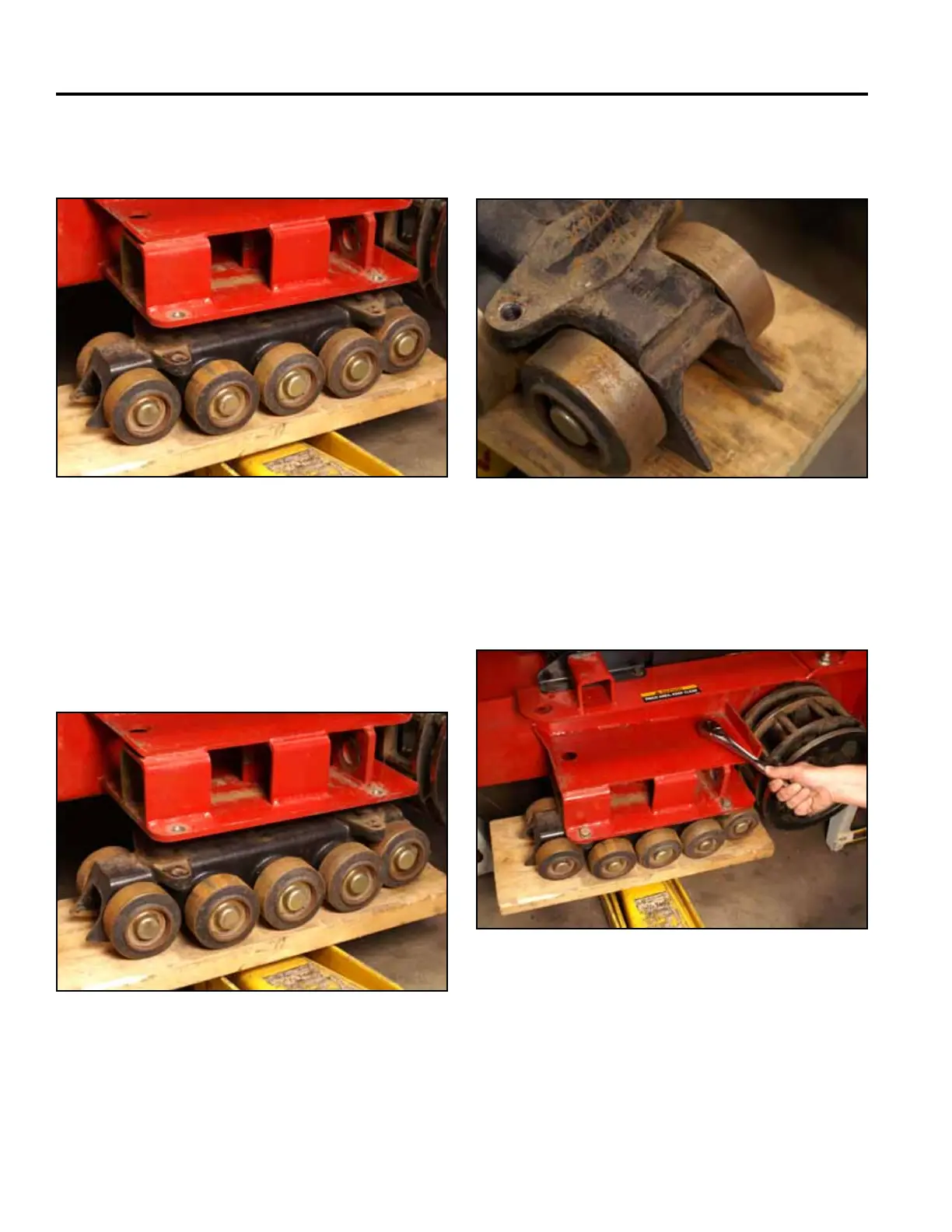

7. Usingtheoorjack,lowerthetrackguidefromthe
frame (Fig. 1545).
Fig 1545 PICT-4523
1. Placeasuitableboardontoahydraulicoorjack.
Placethetrackguideontopoftheoorjack.
2. Position the track guide to the frame (Fig. 1546).
Fig 1546 PICT-4523
Note: The track guide end with the step, is mounted
towardthedrivesprocket(Fig.1547).
Fig 1547 PICT-4545
3. Using a 3/4” socket, loosely install 4 bolts and lock
washers to secure the track guide to the mainframe
(Fig. 1548).
Fig 1548 PICT-4522
