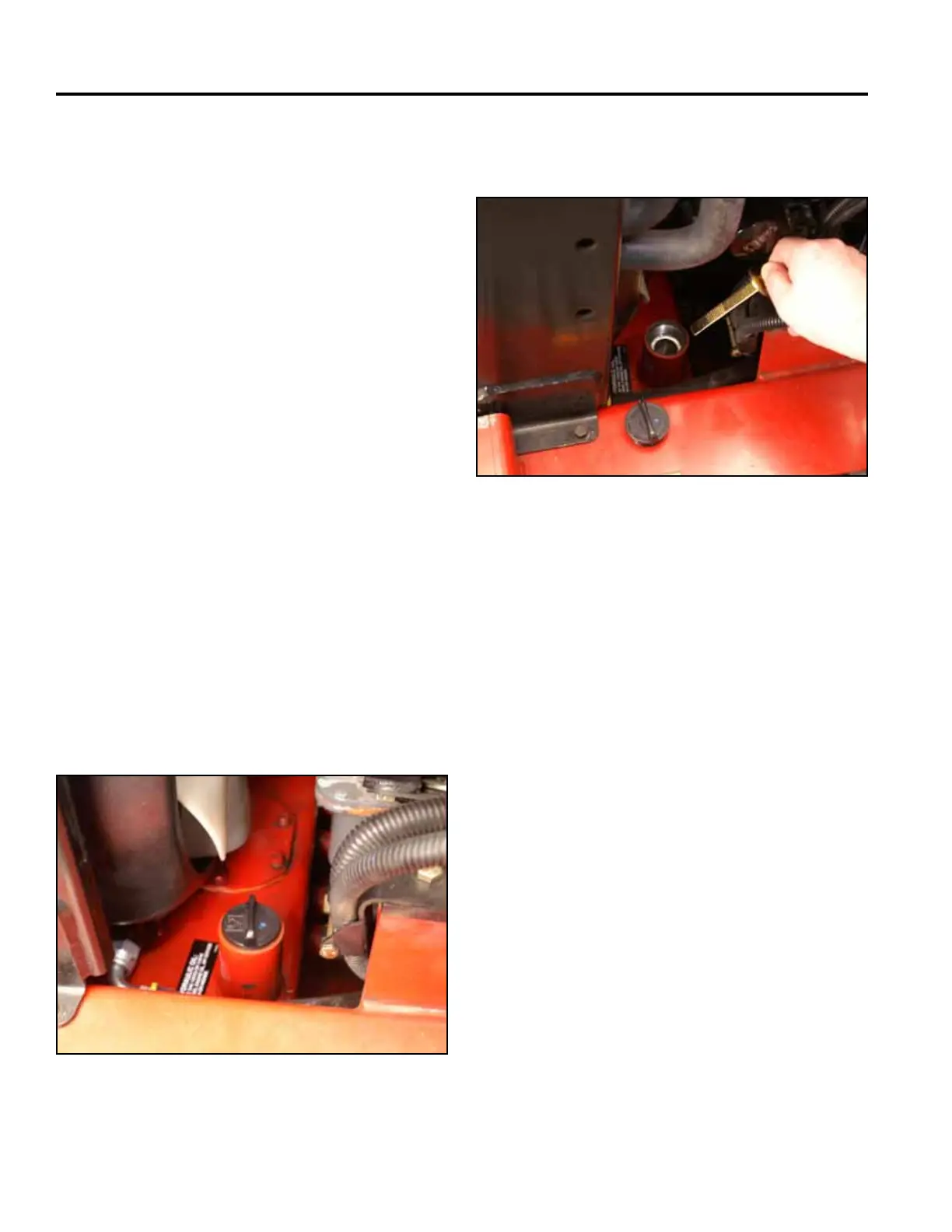

Fig 0008 PICT-8738
7. Theuidlevelshouldbebetweenthemarksonthe
dipstick.Ifthelevelislow,addenoughuidtoraise
ittotheproperlevel.
8. Installthecaponthellerneck.
9. InstalltheRHsidegrill.
10. Starttheunit,removethecylinderlockandlowerthe
loaderarms.
11. Closethehood.
Hydraulic Reservoir Tank
Location
Checking the Hydraulic Fluid
Thehydraulicreservoirtankislocatedinthefrontofthe
TX525unit.
Hydraulic Tank Capacity: 10.5gallons(39.7liters)
Type of Oil to Use: 10w-30or15w-40detergent,diesel
engineoil(APIServiceCH-4orhigher).
Checkthehydraulicuidleveldailybeforetheengineis
rststartedandafterevery25operatinghours.
1. Removetheattachment,ifoneisinstalled.
2. Parkthetractionunitonalevelsurface,openthe
hood,raisetheloaderarm,installcylinderlockand
fullyretractthetiltcylinder.
3. Stoptheengine,removethekey,andandallowthe
enginetocool.
4. RemovetheLHsidegrill.
5. Cleantheareaaroundthellerneckofthehydraulic
tank(Fig.0007).
Fig 0007 PICT-8731
