Toro TX525 - Starter Replacement; Starter Removal

ENGINE
4-49TX525 Service Manual Rev. 000
18. Installthehairpincotter(Fig.0257).

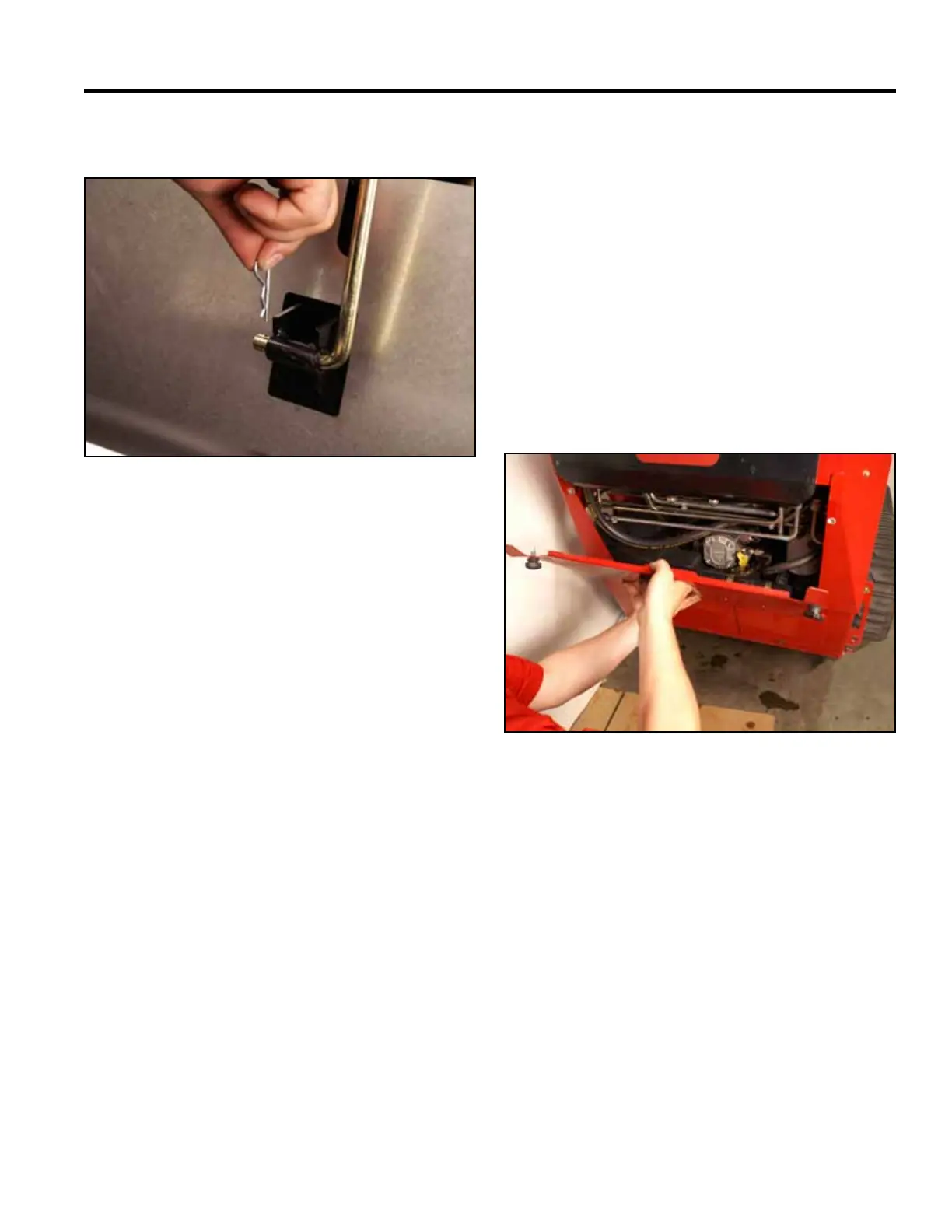

Fig 0257 Belt 001
19. Installthetandempumpandcouplerassembly.
Referto“HydraulicTandemPumpInstallation”on
page6-37.
Starter Removal
Starter Replacement
1. Parkthemachineonaatsurface.
2. Raisethehood.
3. Raisetheloaderarm.Locktheloaderarminto
positionusingtheloaderarmlock.
4. Turnthemachineoffandremovethekey.Allowthe
machine to cool.
5. Removetherearaccesspanel(Fig.0258).
Fig 0258 PICT-4505a
