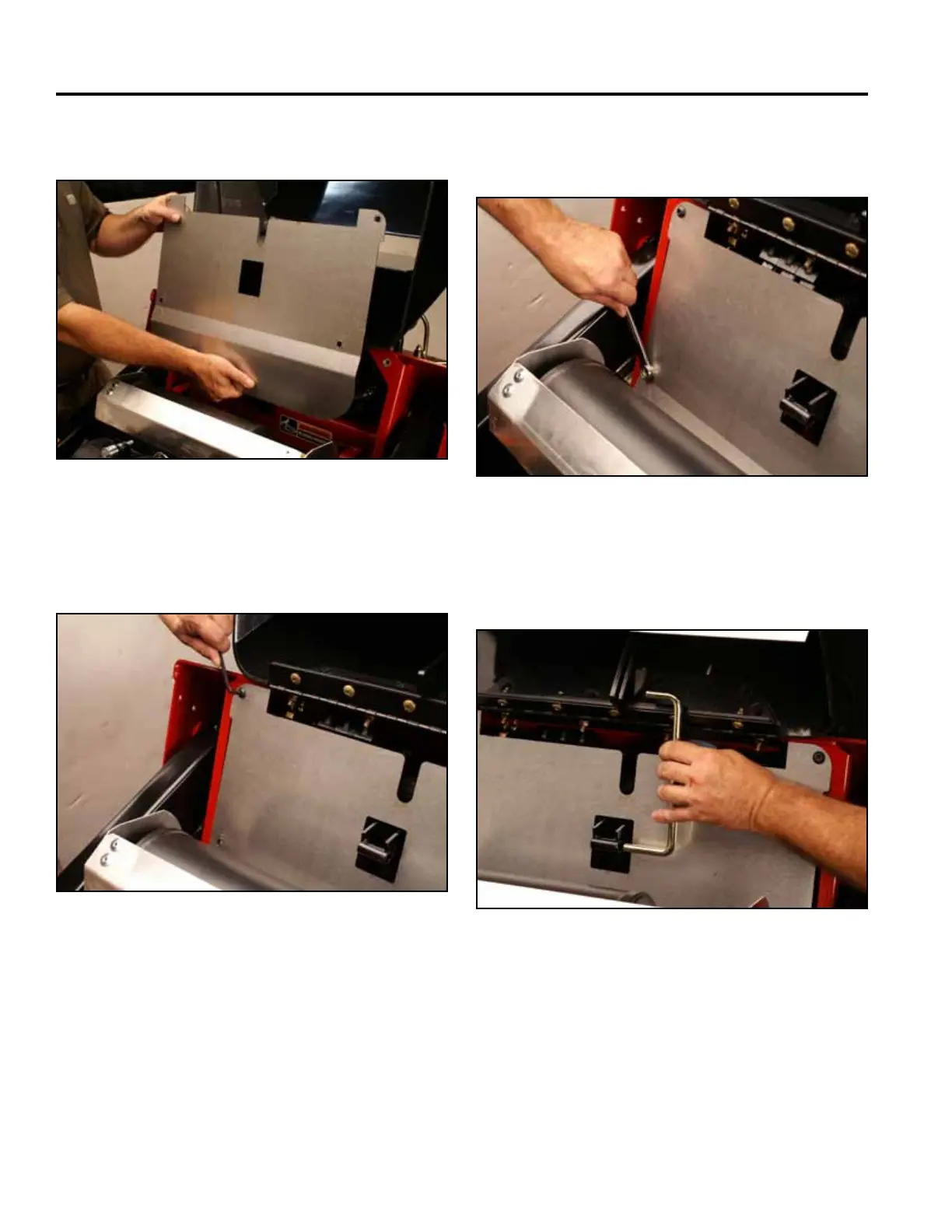

14. Positiontheheatshield(Fig.0253).
Fig 0253 Belt 005
15. Usinga3/16”Allenwrench,installthe2upperheat
shieldscrews(Fig.0254).
Fig 0254 Belt 004
16. Usinga1/2”wrench,installthe2lowerheatshield
screws(Fig.0255).
Fig 0255 Belt 002
17. Supportthehoodandinstalltheproprod(Fig.
0256).
Fig 0256 Belt 003
