ENGINE
4-47TX525 Service Manual Rev. 000

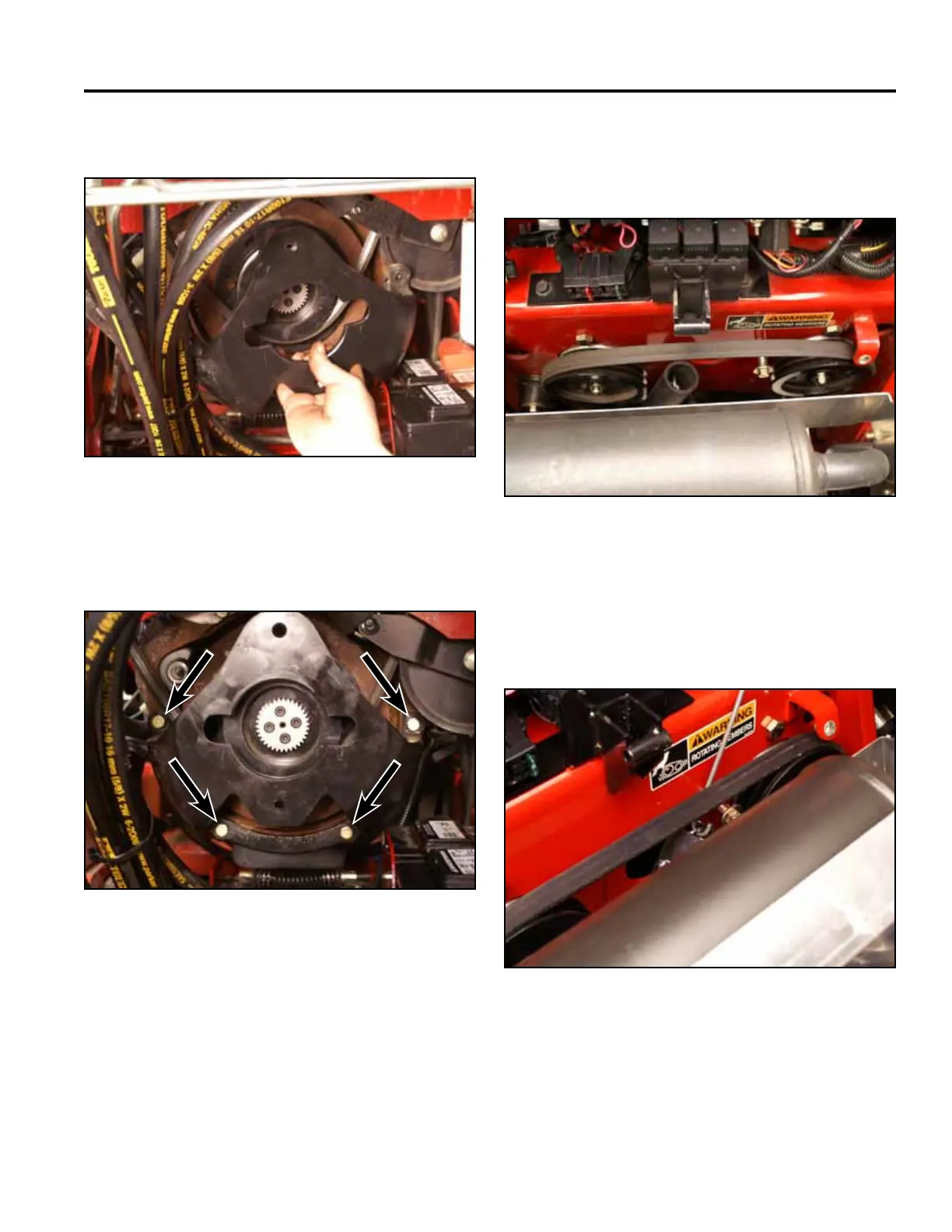

10. Positionthepumpmounttotheengine(Fig.0249).
Fig 0249 PICT-4861
11. Usinga13mmsocket,install4boltssecuringthe
pumpmounttotheenginehousing(Fig.0250).
Fig 0250 PICT-4863
12. Ensurethebeltisroutedaroundtheenginepulley
andinstallthebeltontotherightandlefthydraulic
tractionpumppulleys(Fig.0251).
Fig 0251 PICT-8902
13. Maneuverthespringtool(Torop/n92-5771)be-
tweenthedrivebeltandthetower.Hooktheidler
springtothespringpostlocatedonthetowerand
removethespringtool(Fig.0252).
Fig 0252 Belt 007
