Toro TX525 - Brake Assembly Installation 270000100 - 270000999

BRAKES
8-11TX525 Service Manual Rev. 000
Brake Assembly Installation 270000100 -
270000999

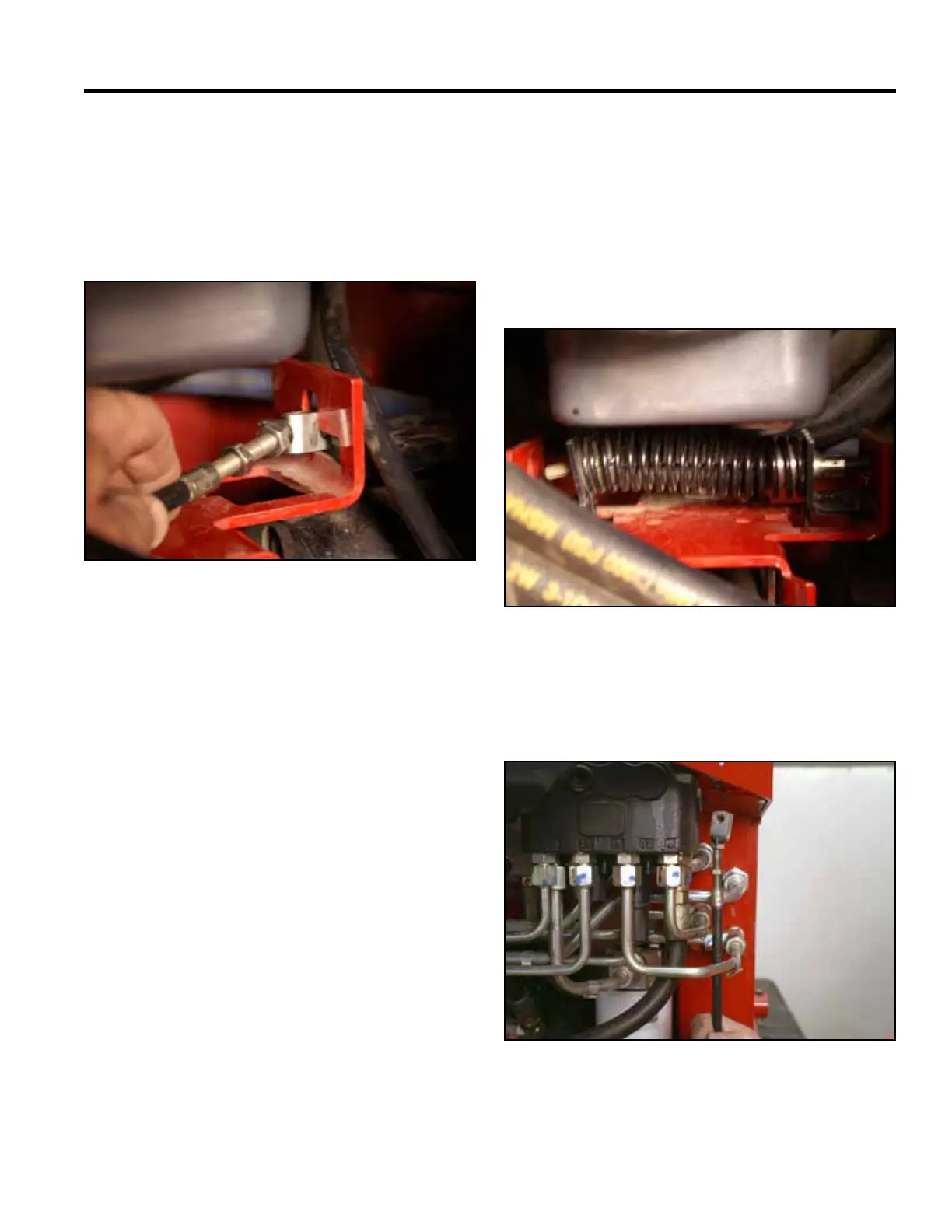

1. Route the brake cable as follows:
a. Through the frame brake bracket (Fig. 1674).
Fig 1674 PICT-4295
b. over the top of the negative battery cable
c. behindthehydrauliclterreturnline
d. betweenthehydrauliclterandtheframe
2. Install the brake assembly into the frame so that the
tabs on the two brake plate mounting brackets are
pointing down (Fig. 1675).
3. Route the brake cable up through the hydraulic lines
and into the control panel assembly (Fig. 1676).
Fig 1675 PICT-4300
Fig 1676 PICT-4292a
