Toro TX525 - Page 489

BRAKES
8-10 Rev. 000 TX525 Service Manual

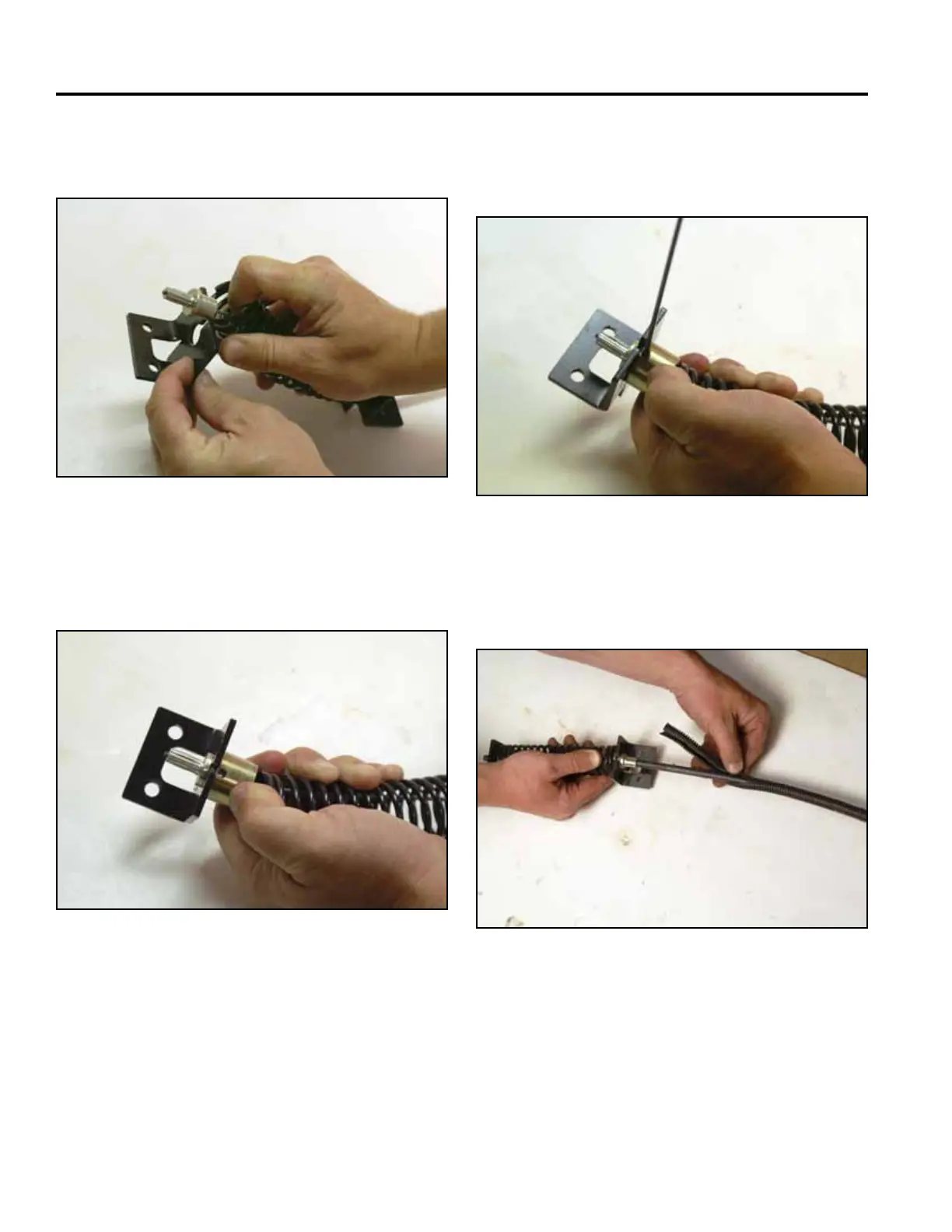

13. Slide the second bracket onto the brake cable (Fig.
1670).
Fig 1670 PICT-1707a
14. Pull the spring back and install the tube guide onto
the brake cable (Fig. 1671).
16. Apply the convoluted tube to the brake cable and
slide it up to the brake cable tube guide (Fig. 1673).
Fig 1671 PICT-1708a
Fig 1673 PICT-4299a
15. Using a 3/32” hex wrench, tighten the tube guide
set screw onto the brake cable so that the bracket is
secure (Fig. 1672).
Fig 1672 PICT-1709a
