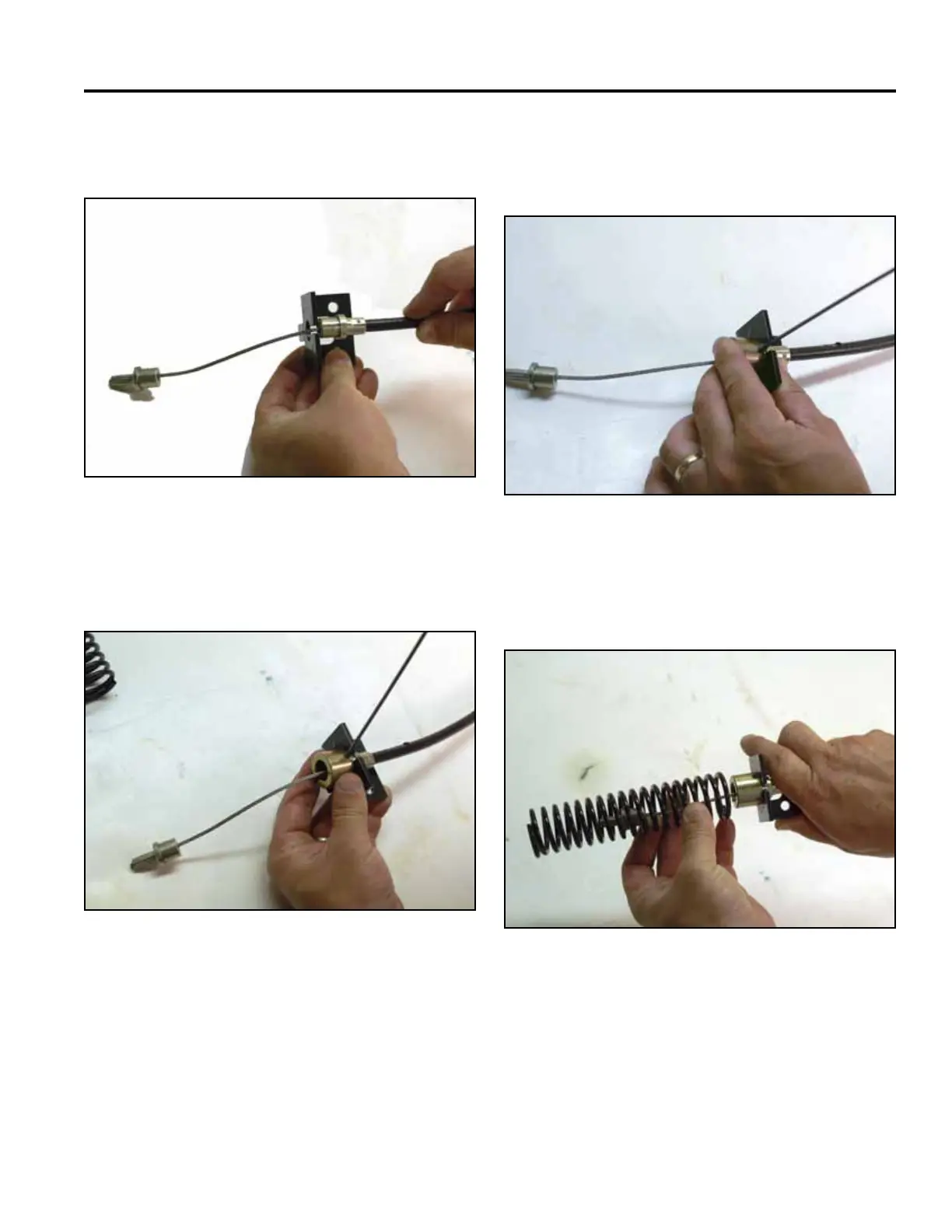

9. Remove the second bracket from the brake cable
(Fig. 1666).
Fig 1666 PICT-1704a
10. Install a bracket and tube guide onto the new brake
cable (Fig. 1667).
Fig 1667 PICT-1703a
11. Using a 3/32” hex wrench, tighten the tube guide
set screw onto the brake cable so that the bracket is
secure (Fig. 1668).
Fig 1668 PICT-1705a
12. Slide the spring onto the brake cable and up to the
bracket (Fig. 1669).
