BRAKES
8-8 Rev. 000 TX525 Service Manual

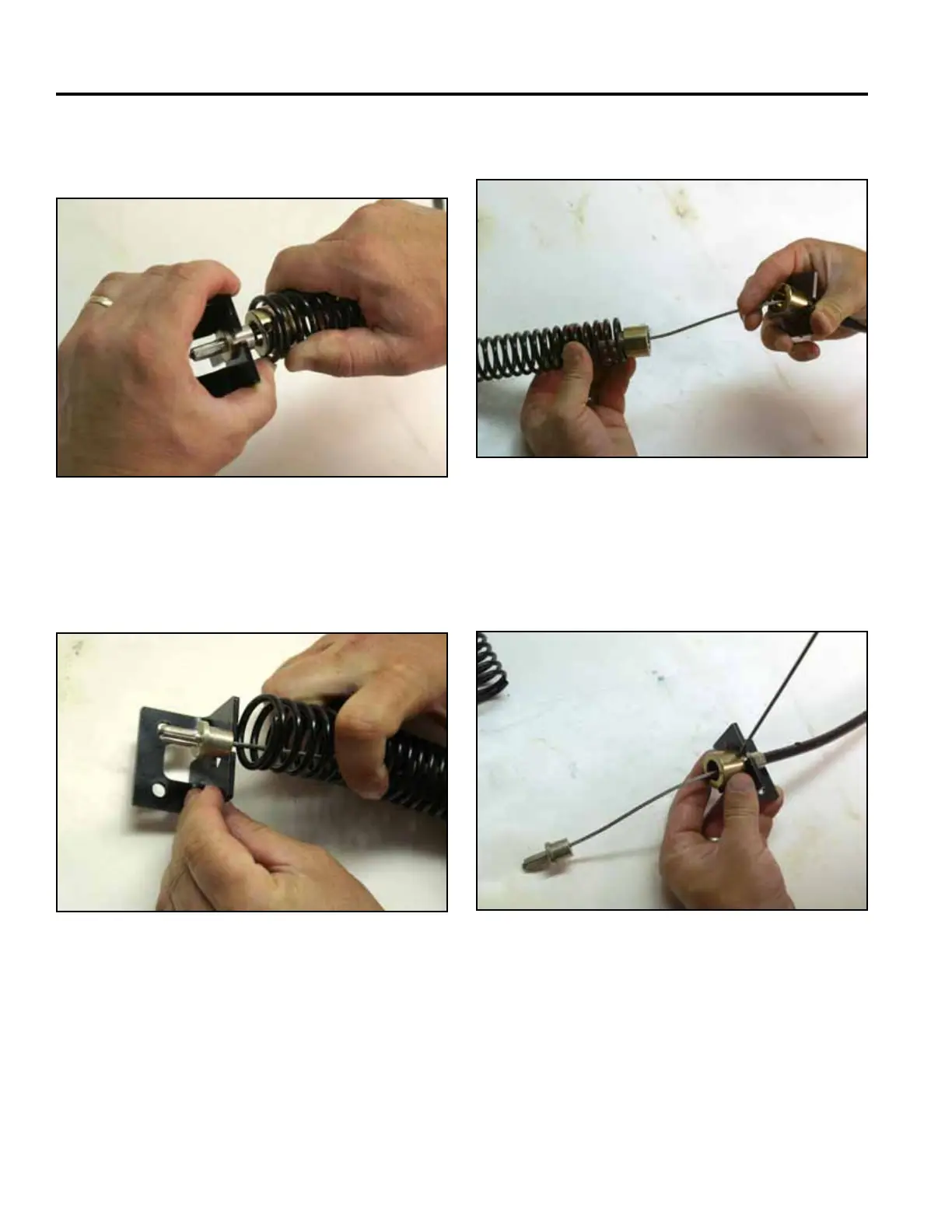

5. Slide the tube guide away from the bracket (Fig.
1662).
Fig 1662 PICT-1700a
6. Remove the bracket from the brake cable (Fig.
1663).
8. Using a 3/32” hex wrench, remove the set screw
retaining the second tube guide to the brake cable
(Fig. 1665).
Fig 1663 PICT-1701a
Fig 1665 PICT-1703a
7. Slide the spring off the brake cable (Fig. 1664).
Fig 1664 PICT-1702a
