Toro TX525 - Flywheel Installation

ENGINE
4-44 Rev. 000 TX525 Service Manual

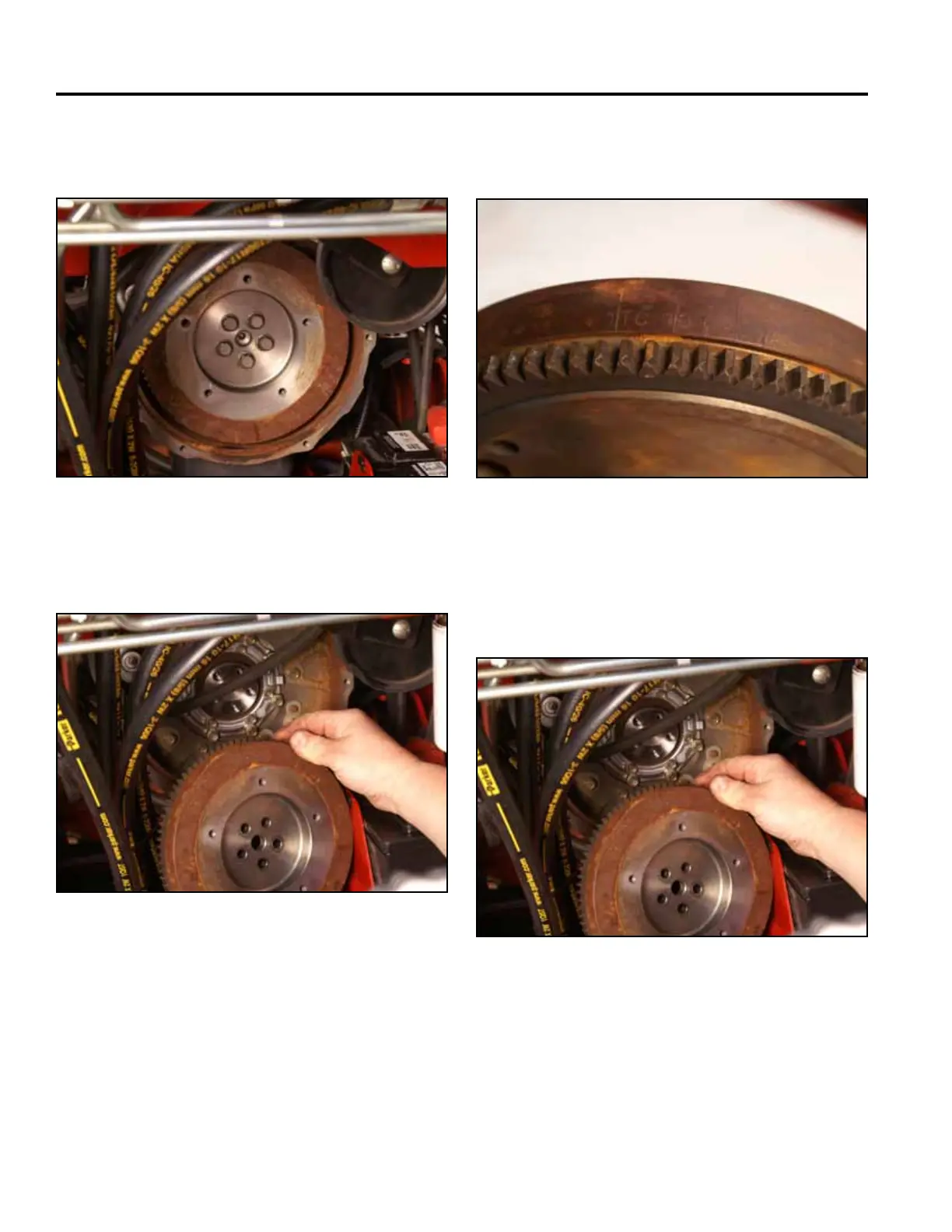

16. Using14mmsocket,removethe5boltssecuringthe
ywheeltothecrankshaft(Fig.0237).
Fig 0237 PICT-4843
17. Removetheywheel(Fig.0238).
Fig 0238 PICT-4844
Flywheel Installation
18. Inspectthestarterengagementteeth.Replacethe
ywheelifwornordamaged(Fig.0239).
Fig 0239 PICT-4847
1. Slidetheywheelontothecrankshaft(Fig.0240).
Fig 0240 PICT-4844
