Toro TX525 - Page 96

ENGINE
4-43TX525 Service Manual Rev. 000
12. Removethedrivebeltfromaroundtheenginepulley
(Fig.0233).

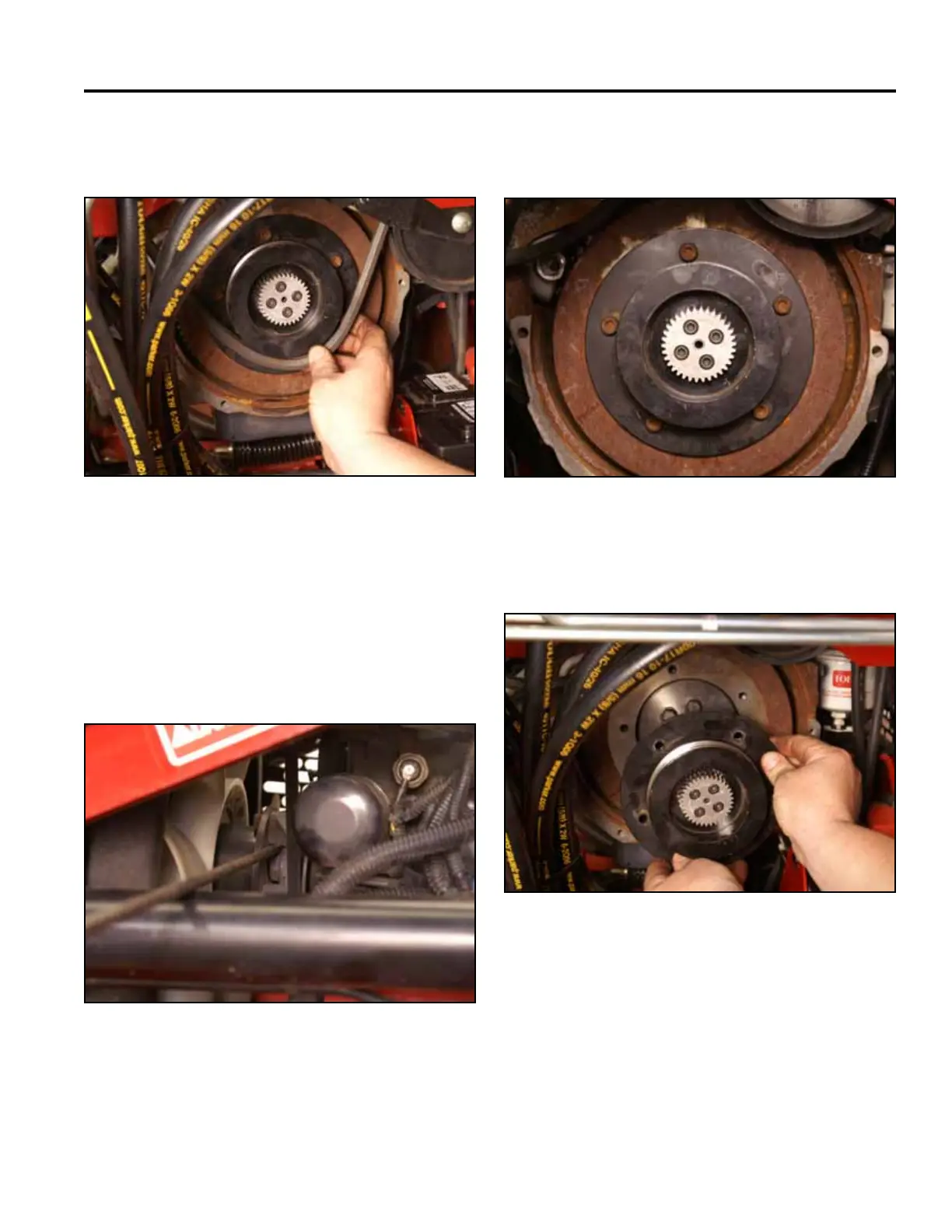

Fig 0233 PICT-4862
13. Securetheywheeltokeepitfromturning.You
candothisbyslidingalengthof5/16”diameterrod
stockinbetweenthefanmountpulleyandfanmount
spacer.Therodstockshouldbeinsertedsoitruns
ontopofthefanmountpulleyscrew.Therodstock
shouldbeatleast16”(40.6cm)longsothatitrests
onthelefthandloaderarmliftcylinder(Fig.0234).
Fig 0234 PICT-4840
14. Usinga6mmAllensocket,removethe5boltssecur-
ingtheenginepulleytotheywheel(Fig.0235).
Fig 0235 PICT-4856
15. Removetheenginepulley(Fig.0236).
Fig 0236 PICT-4857
