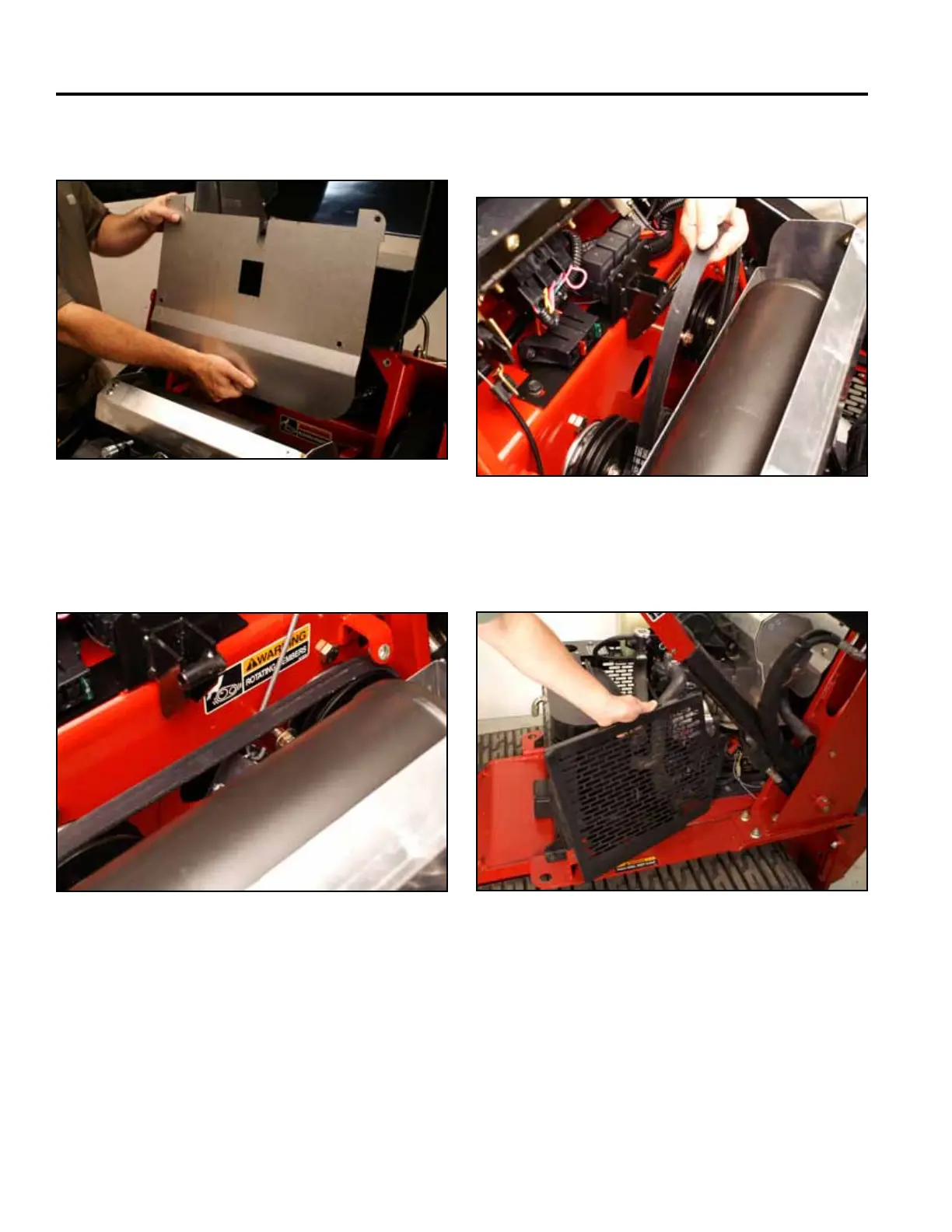

8. Removetheheatshield(Fig.0229).
Fig 0229 Belt 005
9. Usingaspringtool(Torop/n92-5771),removethe
idlerspringfromitspost(Fig.0230).
Fig 0230 Belt 007
10. Removethebeltfromtherightandlefthydraulic
tractionpumppulleys(Fig.0231).
Fig 0231 Belt 008
11. Removethelefthandsidegrill(Fig.0232).
Fig 0232 PICT-4945
