Toro TX525 - Brake Handle Installation

BRAKES
8-51TX525 Service Manual Rev. 000
Brake Handle Installation

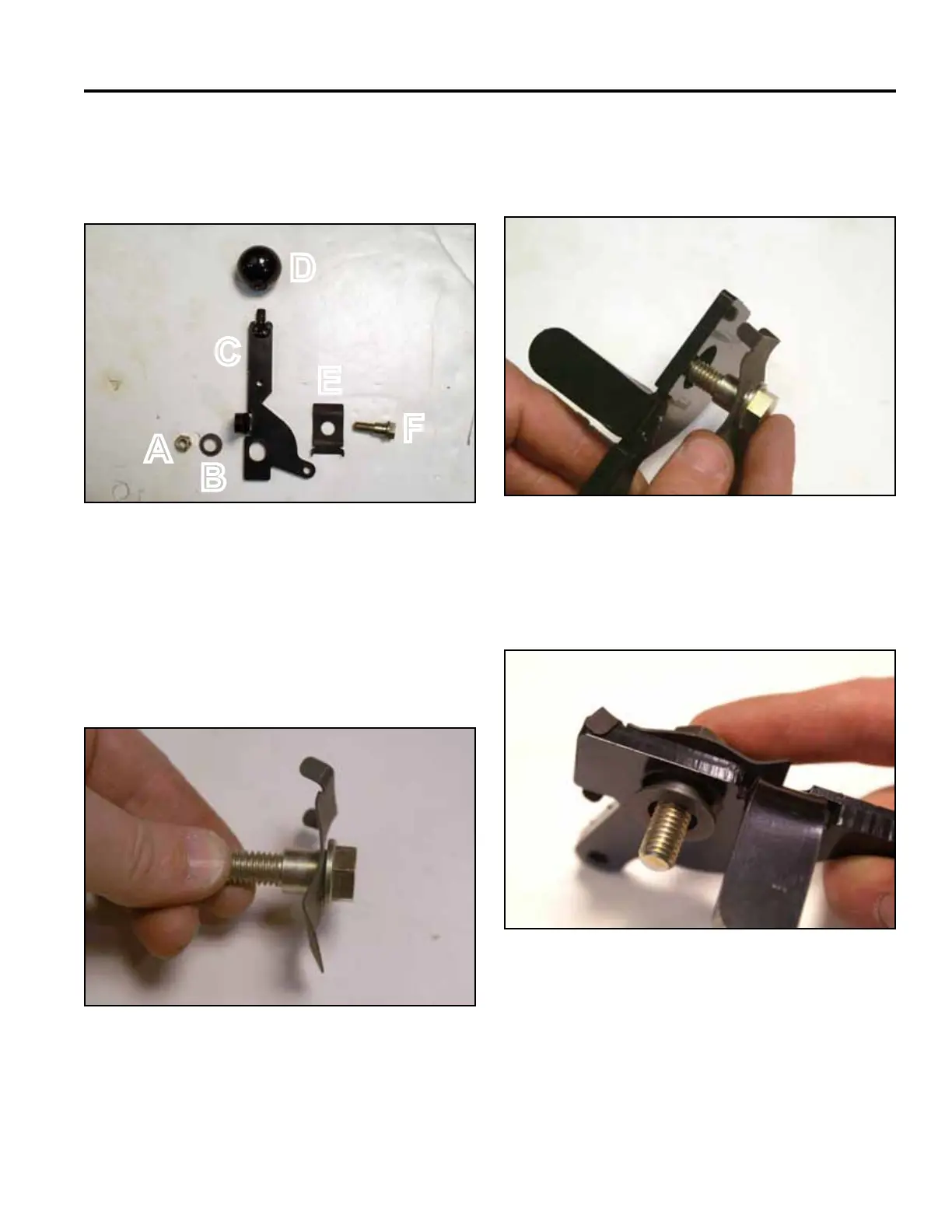

Brake Handle Assembly (Fig. 1824)
2. Slide the brake handle onto the bolt/leaf spring.
Position the leaf spring onto the handle as shown
(Fig. 1826):
Fig 1824 PICT-4429a
Fig 1826 PICT-4434a
3. Install the bushing over the bolt and into the handle
(Fig. 1827).
1. Slide the leaf spring onto the shoulder bolt (Fig.
1825).
A. Nut D. Knob
B. Bushing E. Leaf spring
C. Handle F. Shoulder bolt
Fig 1827 PICT-4435
Fig 1825 PICT-4433a
A
B
C
D
E
F
