Toro TX525 - Alternator Assembly Teardown

ENGINE
4-153TX525 Service Manual Rev. 000
Alternator Assembly Teardown

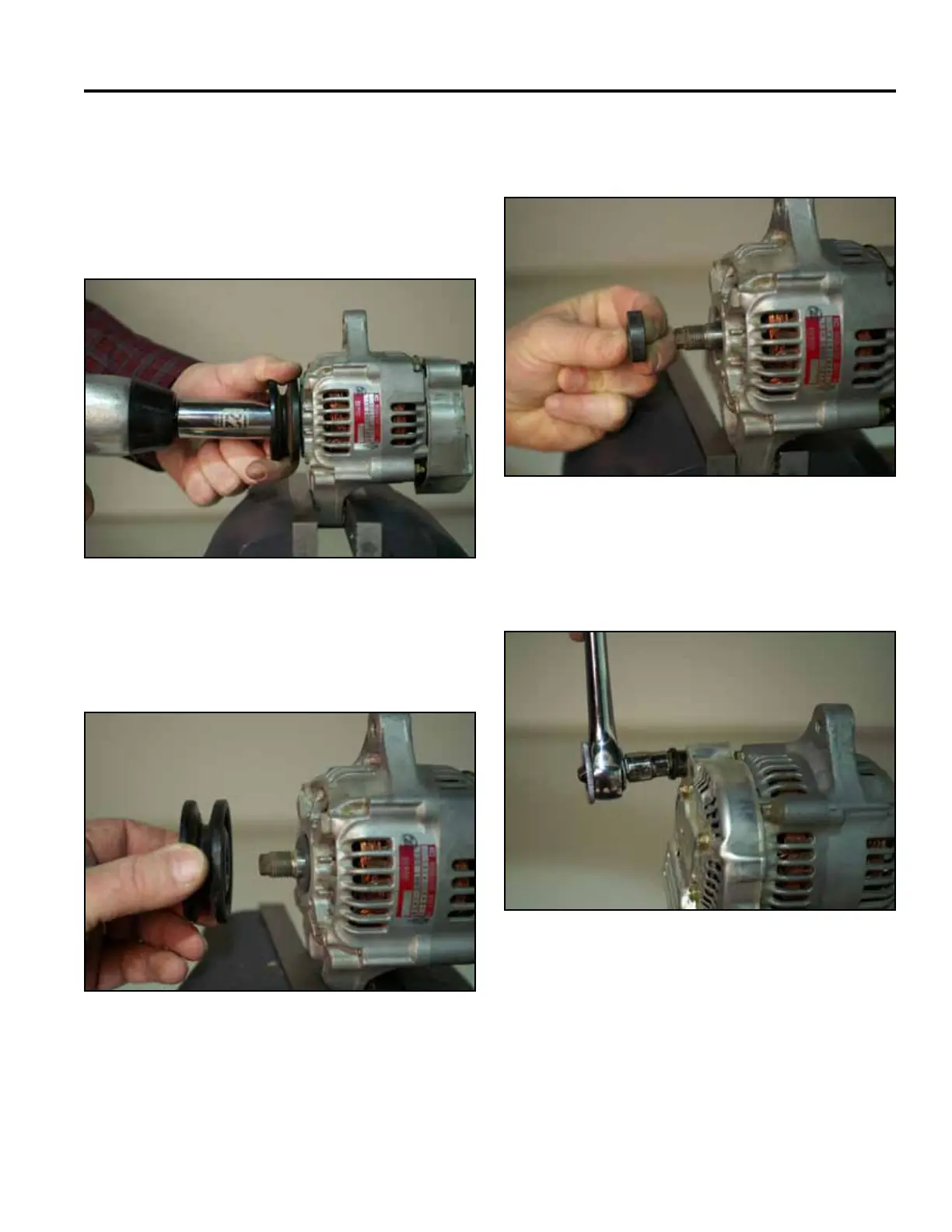

1. Positionthealternatorassemblyintoavise.
2. Usinga22mmsocket,removethenutfromthe
alternatorshaft(Fig.0659).
Fig 0659 PICT-8169
3. Removethepulleyfromthealternatorshaft(Fig.
0660).
Fig 0660 PICT-8170
4. Removethecollarfromthealternatorshaft(Fig.
0661).
Fig 0661 PICT-8266
5. Usinga10mmsocket,removethebatterypostnut
(Fig.0662).
Fig 0662 PICT-8171
