ENGINE
4-152 Rev. 000 TX525 Service Manual

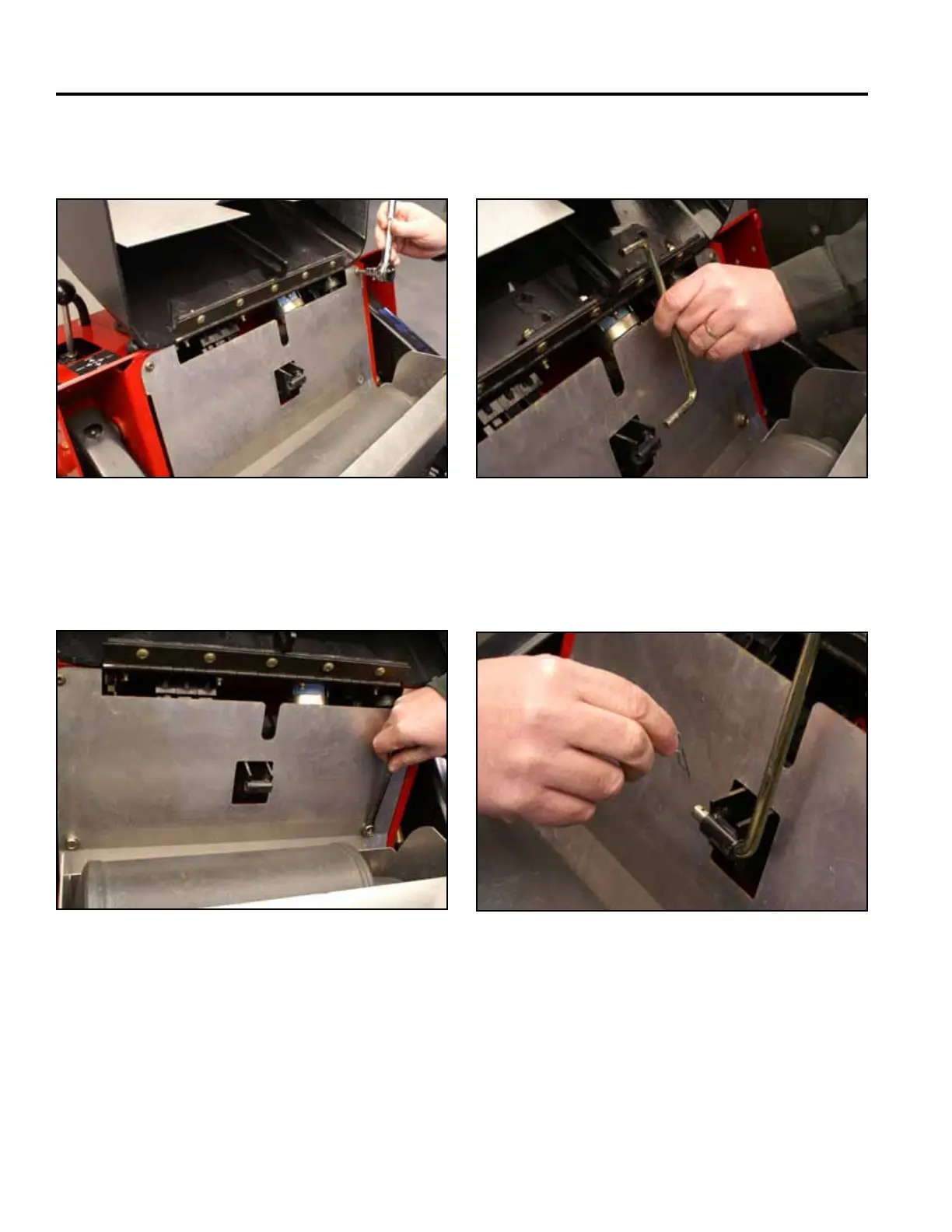

16. Usinga3/16”Allenwrench,installthe2upperheat
shieldscrews(Fig.0655).
Fig 0655 PICT-7132
17. Usinga1/2”wrench,installthe2lowerheatshield
screws(Fig.0656).
Fig 0656 PICT-7129
18. Supportthehoodandinstalltheproprod(Fig.
0657).
Fig 0657 PICT-7128
20. Lowerthehood.
19. Installthehairpincotterintothehoodproprod(Fig.
0658).
Fig 0658 PICT-7126
