ENGINE
4-151TX525 Service Manual Rev. 000
12. Movethethrottlecabletothefastpositiontoassure
theenginethrottleleverrestsagainstthehighidle
stop(Fig.0651).

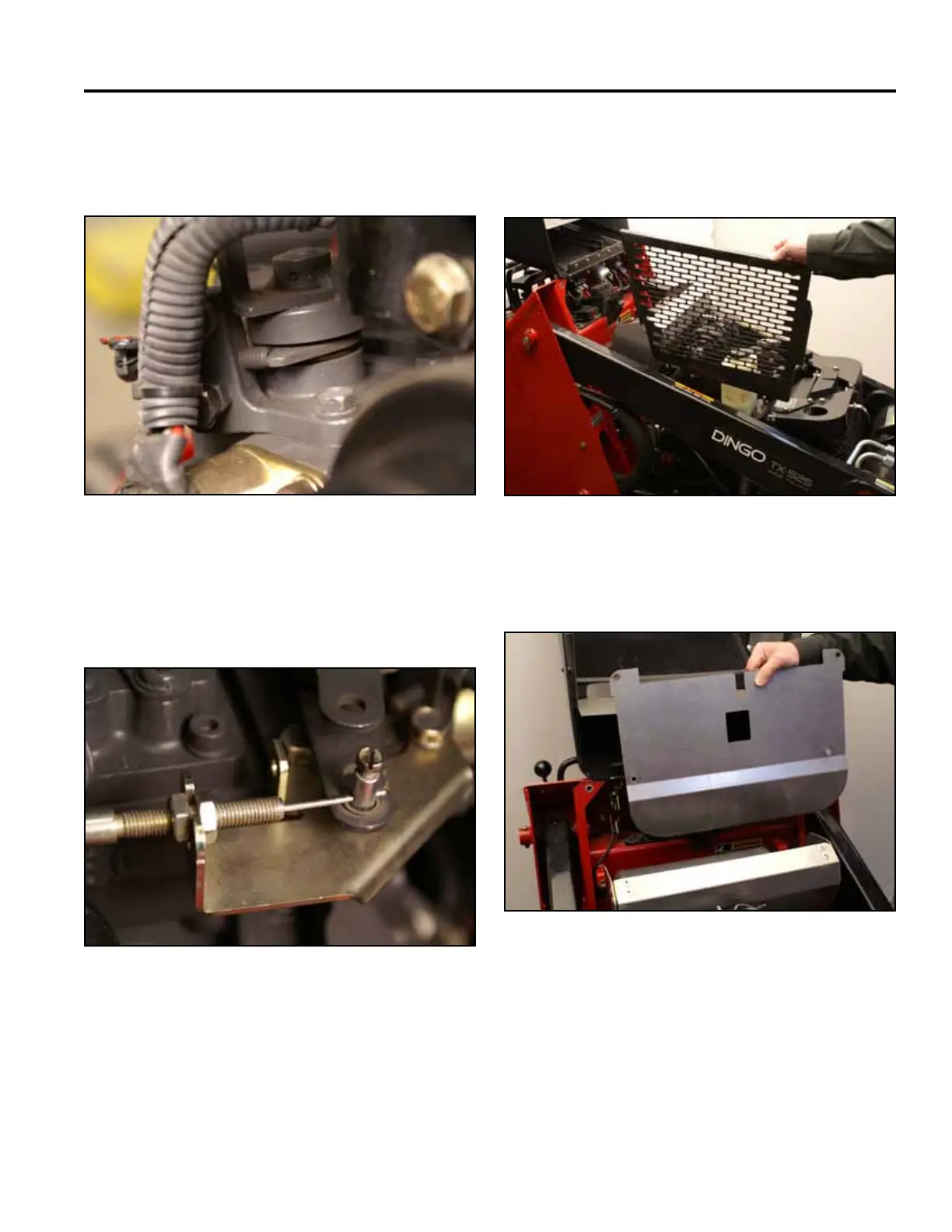

Fig 0651 PICT-7104
Note: When the throttle lever is in the fast position
the engine throttle lever should NOT contact
the throttle cable end (Fig. 0652).
Fig 0652 PICT-7123
13. Movetheairintakehosebackintoposition.
14. Installtherighthandsidepanel(Fig.0653).
Fig 0653 PICT-7138
15. Positiontheheatshield(Fig.0654).
Fig 0654 PICT-7133
